PBC04DAHN

PBC04DAHN
Manufacturer Part Number:PBC04DAHN
Manufacturer:
Product Category:Rectangular Connectors - Headers, Male Pins
Available Quantity:9010 Pieces
Unit Price:Quote by Email

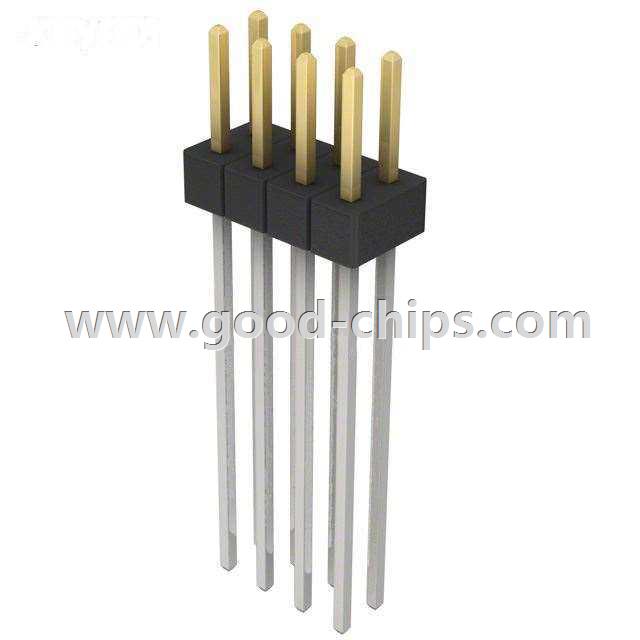

Description:8 Positions Header, Unshrouded, Breakaway Connector 0.100" (2.54mm) Through Hole Gold
Lead Free Status / RoHS Status:Lead free / RoHS Compliant
Moisture Sensitivity Level (MSL):
Production Status (Lifecycle):In Production
Delivery Time:1-2 Days
Date Code (D/C):New
Datasheet Download: PBC04DAHN Datasheet
PBC04DAHN´s Parameters
Internal Part Number898-PBC04DAHN
Manufacturer Lead time6-8 weeks
ConditionNew & Unused, Original Sealed
Online Catalog GxC and PxC
CategoryConnectors, Interconnects
FamilyRectangular Connectors - Headers, Male Pins
ManufacturerSullins Connector Solutions
Series-
PackagingBulk
Part StatusActive
Contact TypeMale Pin
Connector TypeHeader, Unshrouded, Breakaway
Number of Positions8
Number of Positions LoadedAll
Pitch0.100" (2.54mm)
Number of Rows2
Row Spacing0.100" (2.54mm)
Contact Mating Length0.230" (5.84mm)
Mounting TypeThrough Hole
TerminationSolder
Fastening Type-
Features-
Contact FinishGold
Contact Finish Thickness10µin (0.25µm)
ColorBlack
Standard Package 1
Weight0.001 KG
ApplicationEmail for details
Replacement PartPBC04DAHN
Country of OriginUSA / JAPAN / Philippines / Malaysia
MOQ1 Piece
Picture / Image / PhotoSend via email

PBC04DAHN is in stock for immediate shipping now. We are the distributor of Sullins Connector Solutions all series components. The condition of PBC04DAHN is new and unused, you can buy PBC04DAHN Sullins Connector Solutions with us at a very low price and quick delivery.

Please kindly send us an email if you have any demands for PBC04DAHN.
