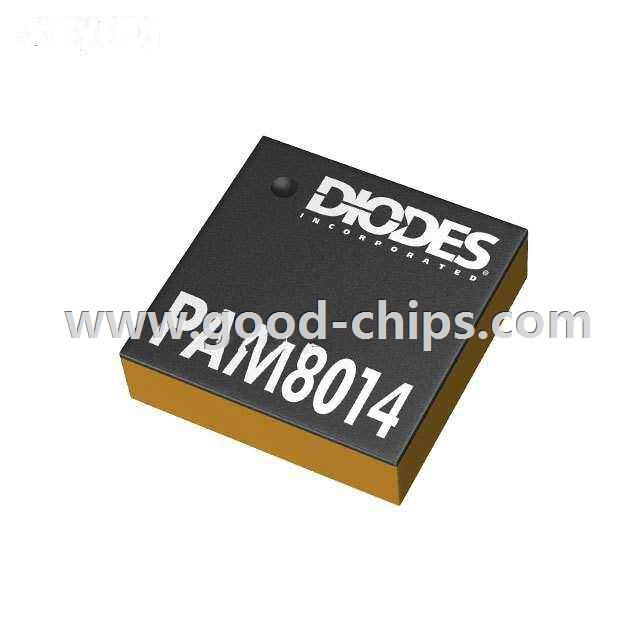

| Manufacturer Part Number: | PAM8014AZR |
|---|---|
| Manufacturer: | Diodes Incorporated |
| Product Category: | Linear - Amplifiers - Audio |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Amplifier IC 1-Channel (Mono) Class D U-WLB1313-9 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | PAM8014AZR Datasheet |
| Internal Part Number | 898-PAM8014AZR | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Featured Product | PAM8014 3.2 W Mono Class-D Audio Amplifier | |
| Online Catalog | Class D Amplifier | |
| Category | Integrated Circuits (ICs) | |
| Family | Linear - Amplifiers - Audio | |
| Manufacturer | Diodes Incorporated | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Type | Class D | |
| Output Type | 1-Channel (Mono) | |
| Max Output Power x Channels @ Load | 3.2W x 1 @ 4 Ohm | |
| Voltage - Supply | 2.5 V ~ 5.5 V | |
| Features | Depop, Short-Circuit and Thermal Protection, Shutdown | |
| Mounting Type | Surface Mount | |
| Operating Temperature | -25°C ~ 85°C (TA) | |
| Supplier Device Package | U-WLB1313-9 | |
| Package / Case | 9-UFBGA, WLBGA | |
| Standard Package | 3,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | PAM8014AZR | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
PAM8014AZR is in stock for immediate shipping now. We are the distributor of Diodes Incorporated all series components. The condition of PAM8014AZR is new and unused, you can buy PAM8014AZR Diodes Incorporated with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for PAM8014AZR.
