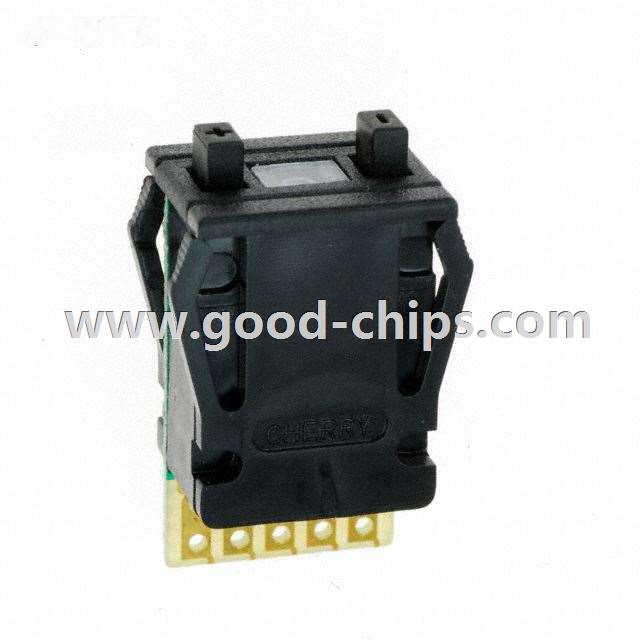

| Manufacturer Part Number: | PAGA-3100 |
|---|---|
| Manufacturer: | Cherry |
| Product Category: | Thumbwheel Switches |
| Available Quantity: | 11221 Pieces |
| Unit Price: | Quote by Email |
| Description: | Thumbwheel Switch Hexadecimal 0.1A @ 50VAC/DC Panel Mount, Snap-In |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | PAGA-3100 Datasheet |
| Internal Part Number | 898-PAGA-3100 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | PA Series | |
| Category | Switches | |
| Family | Thumbwheel Switches | |
| Manufacturer | Cherry | |
| Series | PA | |
| Packaging | Bulk | |
| Part Status | Last Time Buy | |
| Output Code | Hexadecimal | |
| Read Out | 0 ~ 15 | |
| Number of Sections | 1 | |
| Display Characters - Height | 0.071" (1.80mm) | |
| Actuator Type | Pushwheel | |
| Contact Rating @ Voltage | 0.1A @ 50VAC/DC | |
| Contact Material | - | |
| Contact Finish | Gold Alloy | |
| Mounting Type | Panel Mount, Snap-In | |
| Termination Style | Card Edge/Solder Pad | |
| End Caps | Included | |
| Section Width | 0.300" (7.62mm) | |
| Panel Cutout Dimensions | Rectangular - 14.30mm x 10.92mm | |
| Features | - | |
| Depth Behind Flange | 24.00mm | |
| Housing Material | Polyphenylene Oxide (PPO) | |
| Color | Black | |
| Operating Temperature | -20°C ~ 80°C | |
| Electrical Life | - | |
| Standard Package | 560 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | PAGA-3100 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
PAGA-3100 is in stock for immediate shipping now. We are the distributor of Cherry all series components. The condition of PAGA-3100 is new and unused, you can buy PAGA-3100 Cherry with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for PAGA-3100.
