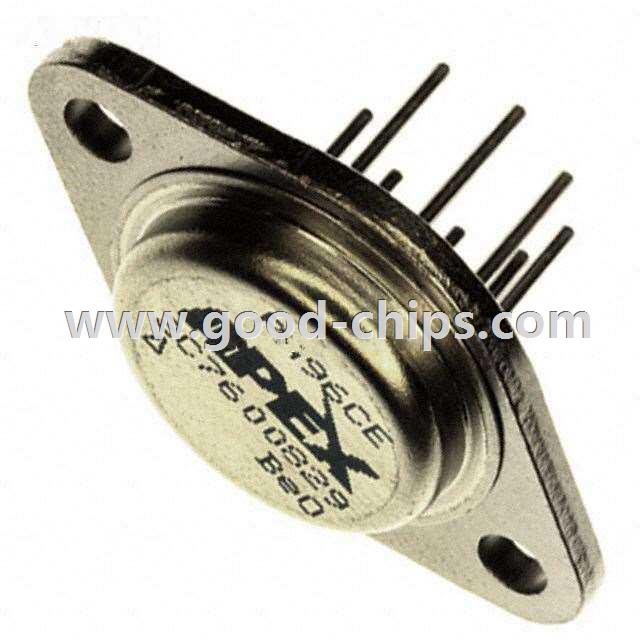

| Manufacturer Part Number: | PA96CE |
|---|---|
| Manufacturer: | Apex Microtechnology |
| Product Category: | Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps |
| Available Quantity: | 9200 Pieces |
| Unit Price: | Quote by Email |
| Description: | Power Amplifier 1 Circuit TO-3-8 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | PA96CE Datasheet |
| Internal Part Number | 898-PA96CE | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Power Analog Portfolio | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Category | Integrated Circuits (ICs) | |
| Family | Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps | |
| Manufacturer | Apex Microtechnology | |
| Series | Apex Precision Power® | |
| Packaging | Tube | |
| Part Status | Active | |
| Amplifier Type | Power | |
| Number of Circuits | 1 | |
| Output Type | - | |
| Slew Rate | 250 V/µs | |
| Gain Bandwidth Product | 175MHz | |
| -3db Bandwidth | - | |
| Current - Input Bias | 200pA | |
| Voltage - Input Offset | 1mV | |
| Current - Supply | 30mA | |
| Current - Output / Channel | 1.5A | |
| Voltage - Supply, Single/Dual (±) | 30 V ~ 300 V, ±15 V ~ 150 V | |
| Operating Temperature | -25°C ~ 85°C | |
| Mounting Type | Through Hole | |
| Package / Case | TO-3-8 | |
| Supplier Device Package | TO-3-8 | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | PA96CE | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
PA96CE is in stock for immediate shipping now. We are the distributor of Apex Microtechnology all series components. The condition of PA96CE is new and unused, you can buy PA96CE Apex Microtechnology with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for PA96CE.
