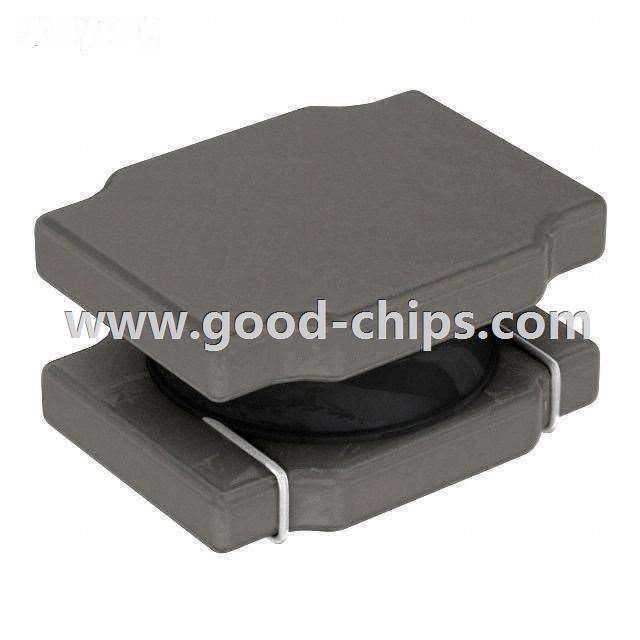

| Manufacturer Part Number: | PA4330.681NLT |
|---|---|
| Manufacturer: | Pulse Electronics Corporation |
| Product Category: | Fixed Inductors |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | 680nH Shielded Wirewound Inductor 2.8A 65 mOhm Max Nonstandard |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | PA4330.681NLT Datasheet |
| Internal Part Number | 898-PA4330.681NLT | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | PA4330 Series | |
| Category | Inductors, Coils, Chokes | |
| Family | Fixed Inductors | |
| Manufacturer | Pulse Electronics Corporation | |
| Series | PA4330 | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Type | Wirewound | |
| Material - Core | Ferrite | |
| Inductance | 680nH | |
| Tolerance | ±20% | |
| Current Rating | 2.8A | |
| Current - Saturation | 3.5A | |
| Shielding | Shielded | |
| DC Resistance (DCR) | 65 mOhm Max | |
| Q @ Freq | - | |
| Frequency - Self Resonant | 77MHz | |
| Ratings | - | |
| Operating Temperature | -40°C ~ 125°C | |
| Frequency - Test | 1MHz | |
| Mounting Type | Surface Mount | |
| Package / Case | Nonstandard | |
| Size / Dimension | 0.087" L x 0.071" W (2.20mm x 1.80mm) | |
| Height - Seated (Max) | 0.039" (1.00mm) | |
| Standard Package | 2,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | PA4330.681NLT | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
PA4330.681NLT is in stock for immediate shipping now. We are the distributor of Pulse Electronics Corporation all series components. The condition of PA4330.681NLT is new and unused, you can buy PA4330.681NLT Pulse Electronics Corporation with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for PA4330.681NLT.
