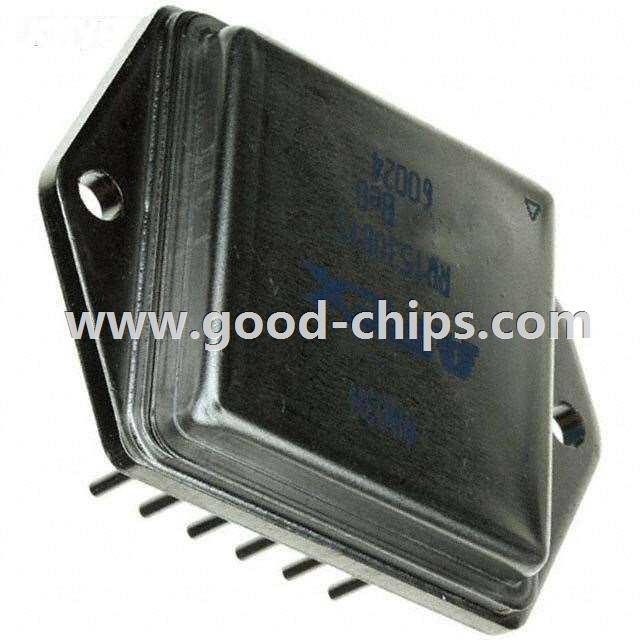

| Manufacturer Part Number: | PA03A |
|---|---|
| Manufacturer: | Apex Microtechnology |
| Product Category: | Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Power Amplifier 1 Circuit 12-DIP |
| Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | PA03A Datasheet |
| Internal Part Number | 898-PA03A | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Power Analog Portfolio | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Category | Integrated Circuits (ICs) | |
| Family | Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps | |
| Manufacturer | Apex Microtechnology | |
| Series | Apex Precision Power® | |
| Packaging | Tube | |
| Part Status | Active | |
| Amplifier Type | Power | |
| Number of Circuits | 1 | |
| Output Type | - | |
| Slew Rate | 8 V/µs | |
| Gain Bandwidth Product | 1MHz | |
| -3db Bandwidth | - | |
| Current - Input Bias | 3pA | |
| Voltage - Input Offset | 250µV | |
| Current - Supply | 125mA | |
| Current - Output / Channel | 30A | |
| Voltage - Supply, Single/Dual (±) | 30 V ~ 150 V, ±15 V ~ 75 V | |
| Operating Temperature | -25°C ~ 85°C | |
| Mounting Type | Through Hole | |
| Package / Case | 12-DIP Module | |
| Supplier Device Package | 12-DIP | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | PA03A | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
PA03A is in stock for immediate shipping now. We are the distributor of Apex Microtechnology all series components. The condition of PA03A is new and unused, you can buy PA03A Apex Microtechnology with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for PA03A.
