| Manufacturer Part Number: | PA-SOTD3SM18-06 |
|---|---|
| Manufacturer: | Logical Systems Inc. |
| Product Category: | Sockets for ICs, Transistors - Adapters |
| Available Quantity: | 9072 Pieces |
| Unit Price: | Quote by Email |

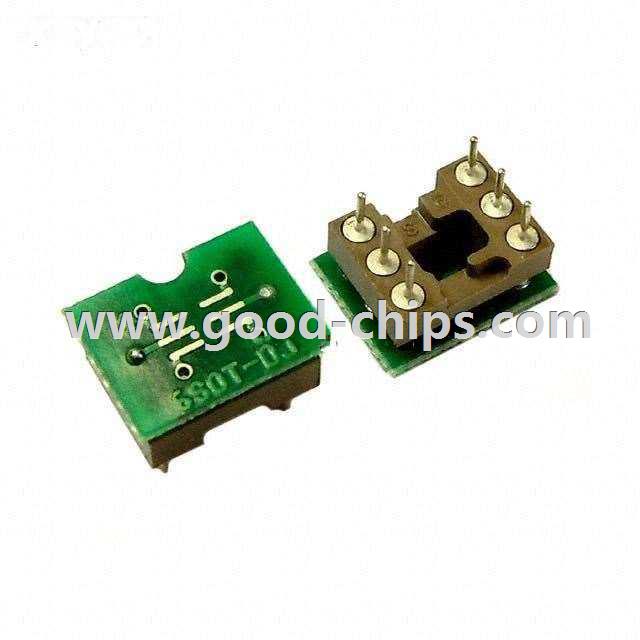

| Description: | IC Socket Adapter SOIC To DIP Through Hole |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | PA-SOTD3SM18-06 Datasheet |
| Internal Part Number | 898-PA-SOTD3SM18-06 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Featured Product | Surface Mount Adapter Kits | |
| Online Catalog | Socket Adapters | |
| Category | Connectors, Interconnects | |
| Family | Sockets for ICs, Transistors - Adapters | |
| Manufacturer | Logical Systems Inc. | |
| Series | - | |
| Part Status | Active | |
| Convert From (Adapter End) | SOIC | |
| Convert To (Adapter End) | DIP | |
| Number of Pins | 6 | |
| Pitch - Mating | 0.037" (0.95mm) | |
| Contact Finish - Mating | - | |
| Mounting Type | Through Hole | |
| Termination | Solder | |
| Pitch - Post | 0.100" (2.54mm) | |
| Contact Finish - Post | - | |
| Housing Material | - | |
| Board Material | - | |
| Termination Post Length | 0.125" (3.18mm) | |
| Material Flammability Rating | - | |
| Features | - | |
| Current Rating | - | |
| Operating Temperature | - | |
| Contact Material - Mating | - | |
| Contact Material - Post | - | |
| Contact Finish Thickness - Mating | - | |
| Contact Finish Thickness - Post | - | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | PA-SOTD3SM18-06 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
PA-SOTD3SM18-06 is in stock for immediate shipping now. We are the distributor of Logical Systems Inc. all series components. The condition of PA-SOTD3SM18-06 is new and unused, you can buy PA-SOTD3SM18-06 Logical Systems Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for PA-SOTD3SM18-06.
