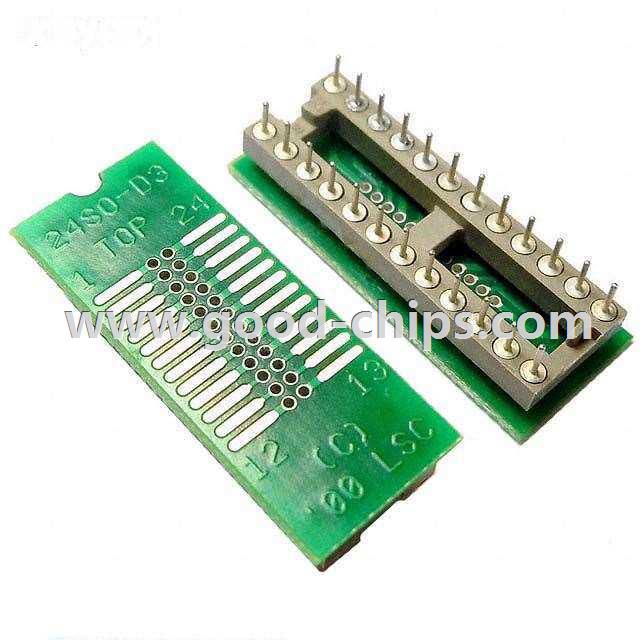

Manufacturer Part Number: | PA-SOD3SM18-24 |
---|---|
Manufacturer: | Logical Systems Inc. |
Product Category: | Sockets for ICs, Transistors - Adapters |
Available Quantity: | 9048 Pieces |
Unit Price: | Quote by Email |
Description: | IC Socket Adapter SOIC To DIP Through Hole |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | PA-SOD3SM18-24 Datasheet |
Internal Part Number | 898-PA-SOD3SM18-24 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Featured Product | Surface Mount Adapter Kits | |
Online Catalog | Socket Adapters | |
Category | Connectors, Interconnects | |
Family | Sockets for ICs, Transistors - Adapters | |
Manufacturer | Logical Systems Inc. | |
Series | - | |
Part Status | Active | |
Convert From (Adapter End) | SOIC | |
Convert To (Adapter End) | DIP | |
Number of Pins | 24 | |
Pitch - Mating | 0.050" (1.27mm) | |
Contact Finish - Mating | - | |
Mounting Type | Through Hole | |
Termination | Solder | |
Pitch - Post | 0.100" (2.54mm) | |
Contact Finish - Post | - | |
Housing Material | - | |
Board Material | - | |
Termination Post Length | 0.125" (3.18mm) | |
Material Flammability Rating | - | |
Features | - | |
Current Rating | - | |
Operating Temperature | - | |
Contact Material - Mating | - | |
Contact Material - Post | - | |
Contact Finish Thickness - Mating | - | |
Contact Finish Thickness - Post | - | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | PA-SOD3SM18-24 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
PA-SOD3SM18-24 is in stock for immediate shipping now. We are the distributor of Logical Systems Inc. all series components. The condition of PA-SOD3SM18-24 is new and unused, you can buy PA-SOD3SM18-24 Logical Systems Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for PA-SOD3SM18-24.
