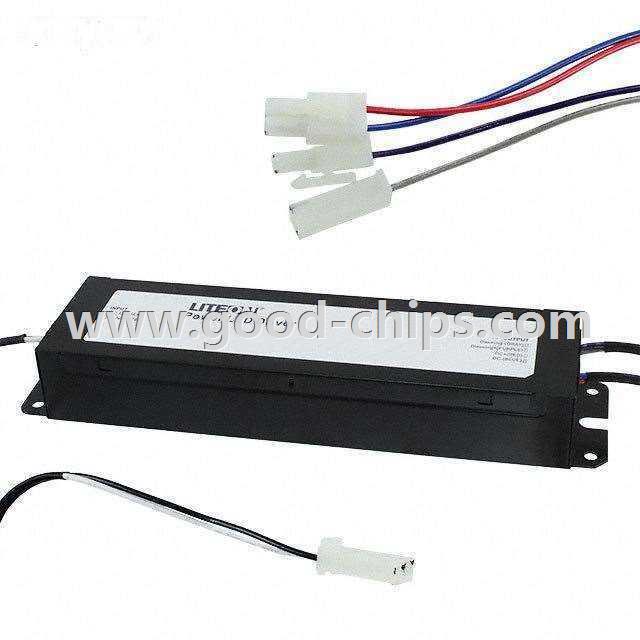

Manufacturer Part Number: | PA-1151-48SL |
---|---|
Manufacturer: | Lite-On Inc. |
Product Category: | LED Drivers |
Available Quantity: | 9110 Pieces |
Unit Price: | Quote by Email |
Description: | 1.05A 80 ~ 140 V Constant Current LED Driver AC DC Converter Topology 1 Output |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | PA-1151-48SL Datasheet |
Internal Part Number | 898-PA-1151-48SL | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Online Catalog | PA-1151 | |
Category | Power Supplies - External/Internal (Off-Board) | |
Family | LED Drivers | |
Manufacturer | Lite-On Inc. | |
Series | - | |
Part Status | Active | |
Type | Constant Current | |
Topology | AC DC Converter | |
Number of Outputs | 1 | |
Voltage - Input (Min) | 100VAC | |
Voltage - Input (Max) | 305VAC | |
Voltage - Output | 80 ~ 140 V | |
Current - Output (Max) | 1.05A | |
Power (Watts) | 150W | |
Voltage - Isolation | 3.75kV (3750V) | |
Dimming | Analog | |
Features | OCP, OTP, OVP, SCP | |
Ratings | - | |
Operating Temperature | -40°C ~ 55°C | |
Efficiency | 90% | |
Termination Style | Wire Leads | |
Size / Dimension | 8.35" L x 2.36" W x 1.34" H (212.0mm x 60.0mm x 34.0mm) | |
Mounting Type | Chassis Mount | |
Approvals | cURus | |
Weight | 0.001 KG | |
Standard Package | 20 | |
Application | Email for details | |
Replacement Part | PA-1151-48SL | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
PA-1151-48SL is in stock for immediate shipping now. We are the distributor of Lite-On Inc. all series components. The condition of PA-1151-48SL is new and unused, you can buy PA-1151-48SL Lite-On Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for PA-1151-48SL.
