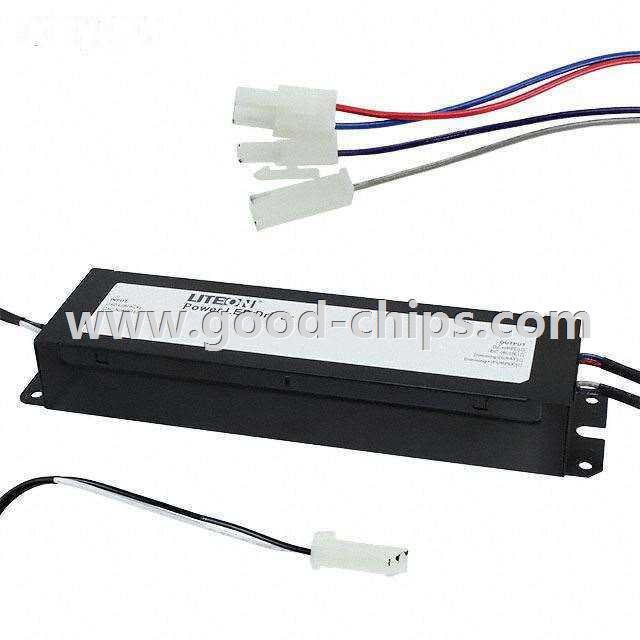

| Manufacturer Part Number: | PA-1101-48SL |
|---|---|
| Manufacturer: | Lite-On Inc. |
| Product Category: | LED Drivers |
| Available Quantity: | 9130 Pieces |
| Unit Price: | Quote by Email |
| Description: | 1.05A 52 ~ 95 V Constant Current LED Driver AC DC Converter Topology 1 Output |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | PA-1101-48SL Datasheet |
| Internal Part Number | 898-PA-1101-48SL | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Power Supplies - External/Internal (Off-Board) | |
| Family | LED Drivers | |
| Manufacturer | Lite-On Inc. | |
| Series | - | |
| Part Status | Active | |
| Type | Constant Current | |
| Topology | AC DC Converter | |
| Number of Outputs | 1 | |
| Voltage - Input (Min) | 100VAC | |
| Voltage - Input (Max) | 305VAC | |
| Voltage - Output | 52 ~ 95 V | |
| Current - Output (Max) | 1.05A | |
| Power (Watts) | 100W | |
| Voltage - Isolation | 3.75kV (3750V) | |
| Dimming | Analog | |
| Features | OCP, OTP, OVP, SCP | |
| Ratings | - | |
| Operating Temperature | -40°C ~ 60°C | |
| Efficiency | 88% | |
| Termination Style | Wire Leads | |
| Size / Dimension | 8.35" L x 2.36" W x 1.34" H (212.0mm x 60.0mm x 34.0mm) | |
| Mounting Type | Chassis Mount | |
| Approvals | cURus | |
| Weight | 0.001 KG | |
| Standard Package | 20 | |
| Application | Email for details | |
| Replacement Part | PA-1101-48SL | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
PA-1101-48SL is in stock for immediate shipping now. We are the distributor of Lite-On Inc. all series components. The condition of PA-1101-48SL is new and unused, you can buy PA-1101-48SL Lite-On Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for PA-1101-48SL.
