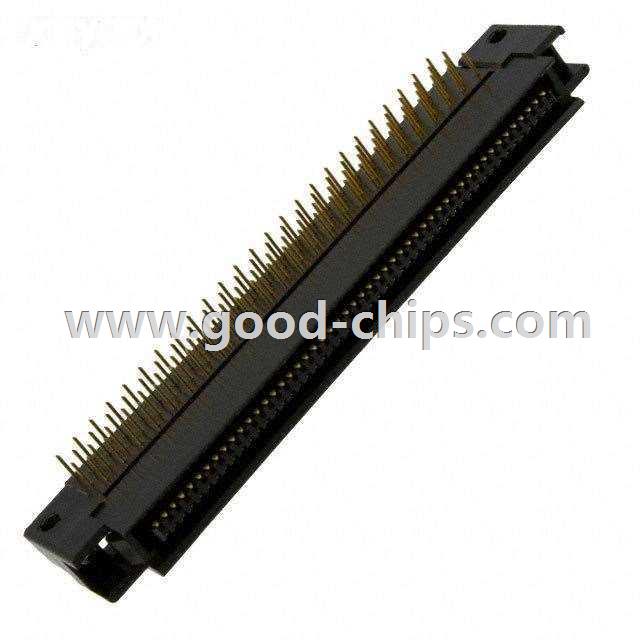

| Manufacturer Part Number: | P50E-100P1-SR1-EA |
|---|---|
| Manufacturer: | 3M |
| Product Category: | Rectangular Connectors - Headers, Male Pins |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | 100 Positions Plug Connector 0.050" (1.27mm) Through Hole, Right Angle Gold |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | P50E-100P1-SR1-EA Datasheet |
| Internal Part Number | 898-P50E-100P1-SR1-EA | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Other Related Documents | Interconnect Mating Guide | |
| 3D Model | P50E-100P1-SR1-XX.igs P50E-100P1-SR1-XX.x_t P50E-100P1-SR1-XX.stp | |
| Category | Connectors, Interconnects | |
| Family | Rectangular Connectors - Headers, Male Pins | |
| Manufacturer | 3M | |
| Series | Pak 50, P50E | |
| Packaging | Bulk | |
| Part Status | Active | |
| Contact Type | Center Strip Contact | |
| Connector Type | Plug | |
| Number of Positions | 100 | |
| Number of Positions Loaded | All | |
| Pitch | 0.050" (1.27mm) | |
| Number of Rows | 2 | |
| Row Spacing | - | |
| Contact Mating Length | - | |
| Mounting Type | Through Hole, Right Angle | |
| Termination | Solder | |
| Fastening Type | Latch Holder | |
| Features | - | |
| Contact Finish | Gold | |
| Contact Finish Thickness | 10µin (0.25µm) | |
| Color | Black | |
| Standard Package | 204 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | P50E-100P1-SR1-EA | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
P50E-100P1-SR1-EA is in stock for immediate shipping now. We are the distributor of 3M all series components. The condition of P50E-100P1-SR1-EA is new and unused, you can buy P50E-100P1-SR1-EA 3M with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for P50E-100P1-SR1-EA.
