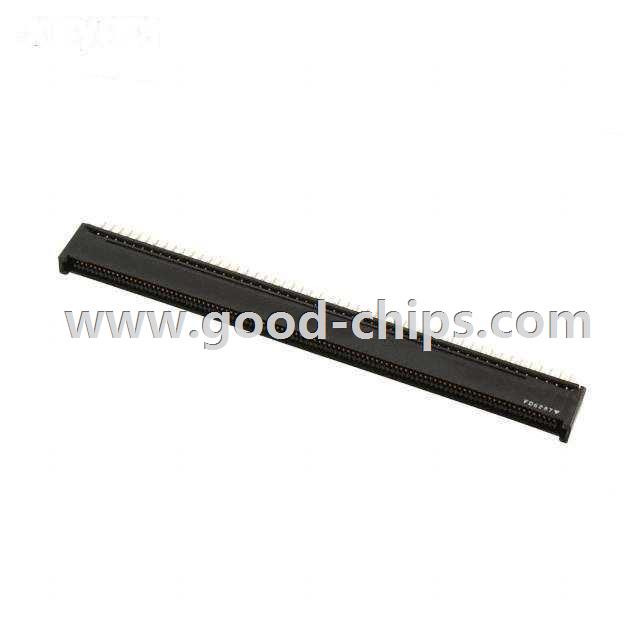

Manufacturer Part Number: | P50-200P-R1-EA |
---|---|
Manufacturer: | 3M |
Product Category: | Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | 200 Position Connector Plug, Center Strip Contacts Through Hole Gold |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | P50-200P-R1-EA Datasheet |
Internal Part Number | 898-P50-200P-R1-EA | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Other Related Documents | Interconnect Mating Guide | |
Category | Connectors, Interconnects | |
Family | Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine | |
Manufacturer | 3M | |
Series | Pak 50, P50 | |
Packaging | Bulk | |
Part Status | Active | |
Connector Type | Plug, Center Strip Contacts | |
Number of Positions | 200 | |
Pitch | 0.050" (1.27mm) | |
Number of Rows | 2 | |
Mounting Type | Through Hole | |
Features | Board Lock, Flange | |
Contact Finish | Gold | |
Contact Finish Thickness | 10µin (0.25µm) | |
Mated Stacking Heights | - | |
Height Above Board | 0.421" (10.70mm) | |
Standard Package | 201 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | P50-200P-R1-EA | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
P50-200P-R1-EA is in stock for immediate shipping now. We are the distributor of 3M all series components. The condition of P50-200P-R1-EA is new and unused, you can buy P50-200P-R1-EA 3M with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for P50-200P-R1-EA.
