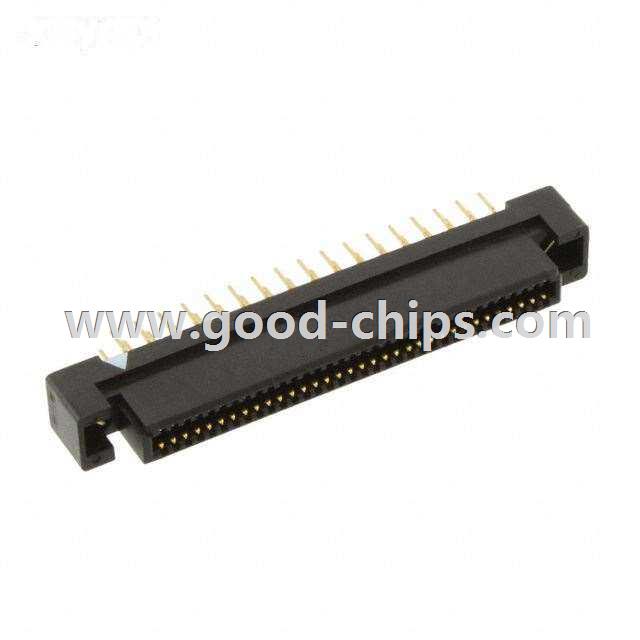

| Manufacturer Part Number: | P50-068S-R1-EA |
|---|---|
| Manufacturer: | 3M |
| Product Category: | Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | 68 Position Connector Socket, Outer Shroud Contacts Through Hole Gold |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | P50-068S-R1-EA Datasheet |
| Internal Part Number | 898-P50-068S-R1-EA | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Other Related Documents | Interconnect Mating Guide | |
| Category | Connectors, Interconnects | |
| Family | Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine | |
| Manufacturer | 3M | |
| Series | Pak 50, P50 | |
| Packaging | Bulk | |
| Part Status | Active | |
| Connector Type | Socket, Outer Shroud Contacts | |
| Number of Positions | 68 | |
| Pitch | 0.050" (1.27mm) | |
| Number of Rows | 2 | |
| Mounting Type | Through Hole | |
| Features | Board Lock, Flange | |
| Contact Finish | Gold | |
| Contact Finish Thickness | 10µin (0.25µm) | |
| Mated Stacking Heights | - | |
| Height Above Board | 0.421" (10.70mm) | |
| Standard Package | 207 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | P50-068S-R1-EA | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
P50-068S-R1-EA is in stock for immediate shipping now. We are the distributor of 3M all series components. The condition of P50-068S-R1-EA is new and unused, you can buy P50-068S-R1-EA 3M with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for P50-068S-R1-EA.
