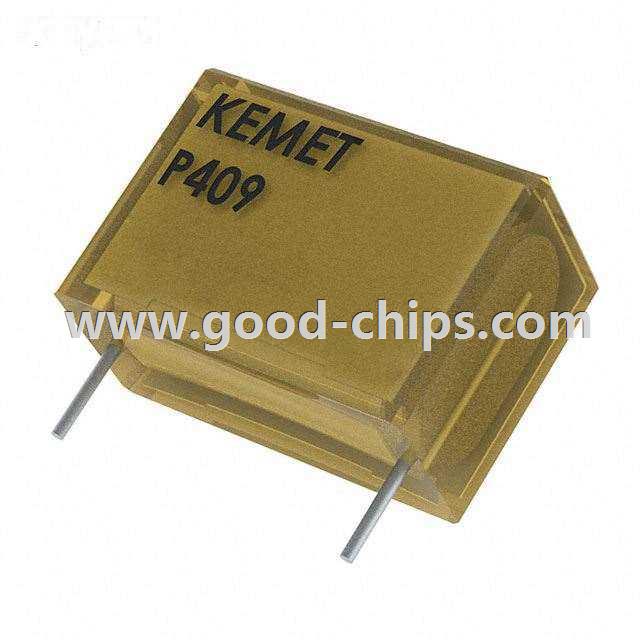

Manufacturer Part Number: | P409CP224M275AH330 |
---|---|
Manufacturer: | Kemet |
Product Category: | EMI/RFI Filters (LC, RC Networks) |
Available Quantity: | 9610 Pieces |
Unit Price: | Quote by Email |
Description: | RC EMI Filter 1st Order Low Pass 1 Channel R = 33 Ohms, C = 0.22µF Radial |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | P409CP224M275AH330 Datasheet |
Internal Part Number | 898-P409CP224M275AH330 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Online Catalog | P409 Series | |
Category | Filters | |
Family | EMI/RFI Filters (LC, RC Networks) | |
Manufacturer | Kemet | |
Series | P409 | |
Packaging | Bulk | |
Part Status | Active | |
Type | Low Pass | |
Filter Order | 1st | |
Technology | RC | |
Number of Channels | 1 | |
Center / Cutoff Frequency | - | |
Attenuation Value | - | |
Resistance - Channel (Ohms) | 33 | |
Current | - | |
Values | R = 33 Ohms, C = 0.22µF | |
ESD Protection | No | |
Operating Temperature | -40°C ~ 85°C | |
Applications | General Purpose | |
Voltage - Rated | 275VAC | |
Mounting Type | Through Hole | |
Package / Case | Radial | |
Size / Dimension | 0.945" L x 0.445" W (24.00mm x 11.30mm) | |
Height | 0.650" (16.50mm) | |
Standard Package | 150 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | P409CP224M275AH330 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
P409CP224M275AH330 is in stock for immediate shipping now. We are the distributor of Kemet all series components. The condition of P409CP224M275AH330 is new and unused, you can buy P409CP224M275AH330 Kemet with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for P409CP224M275AH330.
