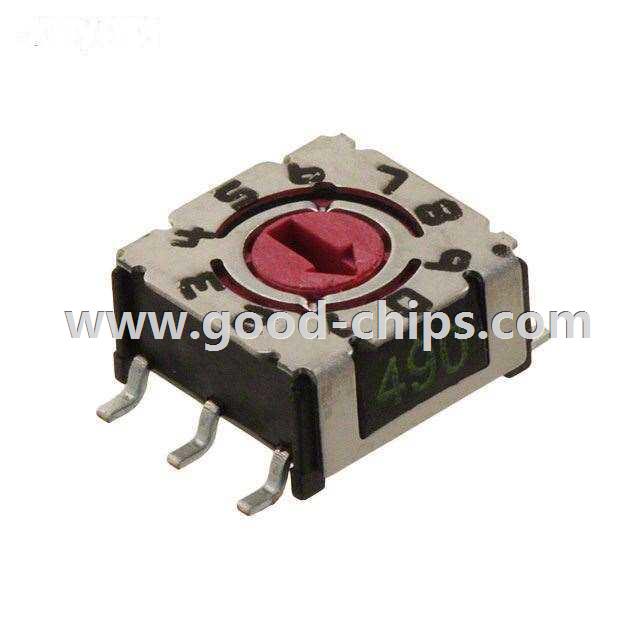

Manufacturer Part Number: | P36S101 |
---|---|
Manufacturer: | Apem Inc. |
Product Category: | DIP Switches |
Available Quantity: | 11758 Pieces |
Unit Price: | Quote by Email |
Description: | Dip Switch BCD 10 Position Surface Mount Rotary for Tool Actuator 100mA 24VDC |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | P36S101 Datasheet |
Internal Part Number | 898-P36S101 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Featured Product | Coded Rotaries | |
Online Catalog | P36 and P36S Series | |
Category | Switches | |
Family | DIP Switches | |
Manufacturer | Apem Inc. | |
Series | P36S | |
Packaging | Tube | |
Part Status | Active | |
Circuit | BCD | |
Number of Positions | 10 | |
Current Rating | 100mA | |
Voltage Rating | 24VDC | |
Actuator Type | Rotary for Tool | |
Actuator Level | Flush, Recessed | |
Contact Material | Phosphor Bronze | |
Contact Finish | Gold | |
Height Above Board | 0.152" (3.85mm) | |
Mounting Type | Surface Mount | |
Termination Style | Gull Wing | |
Pitch | 0.100" (2.54mm), Full | |
Washable | Yes | |
Features | Sealed - Flux Protection | |
Body Material | Thermoplastic | |
Length | 0.291" (7.40mm) | |
Operating Temperature | -30°C ~ 90°C | |
Mechanical Life | 10,000 Cycles | |
Electrical Life | - | |
Standard Package | 50 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | P36S101 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
P36S101 is in stock for immediate shipping now. We are the distributor of Apem Inc. all series components. The condition of P36S101 is new and unused, you can buy P36S101 Apem Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for P36S101.
