Manufacturer Part Number: | P20113TCMWCQ22 |
---|---|
Manufacturer: | C&K Components |
Product Category: | Keylock Switches |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |

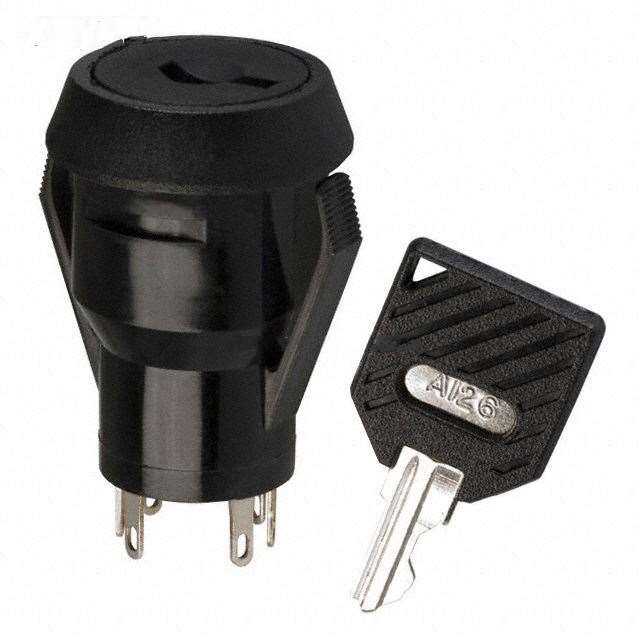

Description: | Keylock Switch 2 Position DPDT 4A (AC) 125V (AC) Panel Mount, Snap-In |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | P20113TCMWCQ22 Datasheet |
Internal Part Number | 898-P20113TCMWCQ22 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Category | Switches | |
Family | Keylock Switches | |
Manufacturer | C&K Components | |
Series | P | |
Part Status | Active | |
Circuit | DPDT | |
Number of Positions | 2 | |
Switch Function | On-On | |
Contact Timing | Not Specified | |
Current Rating | 4A (AC) | |
Voltage Rating - AC | 125V | |
Voltage Rating - DC | - | |
Actuator Type | Flat Key | |
Key Removable Positions | 1 only | |
Angle of Throw | 90° | |
Contact Material | Copper | |
Contact Finish | Silver | |
Mounting Type | Panel Mount, Snap-In | |
Termination Style | Wire Leads | |
Panel Cutout Dimensions | Circular - 20.30mm Dia | |
Features | - | |
Depth Behind Flange | 27.23mm | |
Operating Temperature | - | |
Mechanical Life | - | |
Electrical Life | 10,000 Cycles | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | P20113TCMWCQ22 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
P20113TCMWCQ22 is in stock for immediate shipping now. We are the distributor of C&K Components all series components. The condition of P20113TCMWCQ22 is new and unused, you can buy P20113TCMWCQ22 C&K Components with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for P20113TCMWCQ22.
