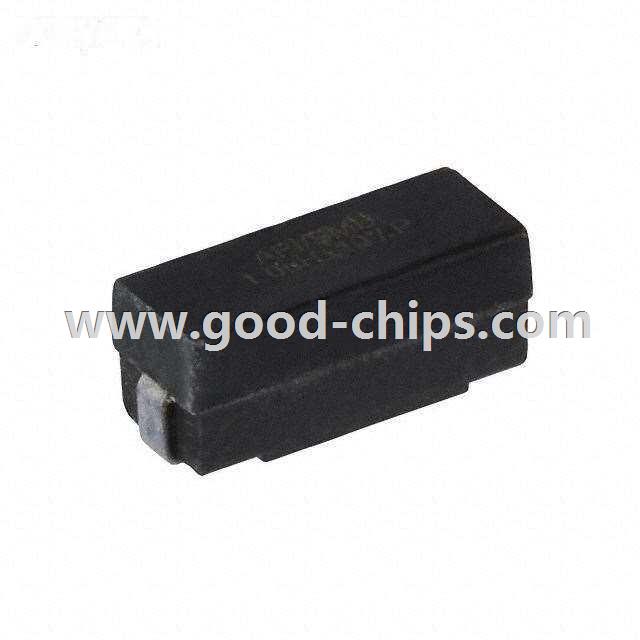

Manufacturer Part Number: | P1330-393H |
---|---|
Manufacturer: | API Delevan Inc. |
Product Category: | Fixed Inductors |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | 39µH Unshielded Inductor 488mA 600 mOhm Max Nonstandard |
Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | P1330-393H Datasheet |
Internal Part Number | 898-P1330-393H | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Category | Inductors, Coils, Chokes | |
Family | Fixed Inductors | |
Manufacturer | API Delevan Inc. | |
Series | P1330 | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Type | - | |
Material - Core | Ferrite | |
Inductance | 39µH | |
Tolerance | ±3% | |
Current Rating | 488mA | |
Current - Saturation | 270mA | |
Shielding | Unshielded | |
DC Resistance (DCR) | 600 mOhm Max | |
Q @ Freq | - | |
Frequency - Self Resonant | - | |
Ratings | - | |
Operating Temperature | -55°C ~ 125°C | |
Frequency - Test | 1kHz | |
Mounting Type | Surface Mount | |
Package / Case | Nonstandard | |
Size / Dimension | 0.325" L x 0.125" W (8.26mm x 3.18mm) | |
Height - Seated (Max) | 0.145" (3.68mm) | |
Standard Package | 500 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | P1330-393H | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
P1330-393H is in stock for immediate shipping now. We are the distributor of API Delevan Inc. all series components. The condition of P1330-393H is new and unused, you can buy P1330-393H API Delevan Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for P1330-393H.
