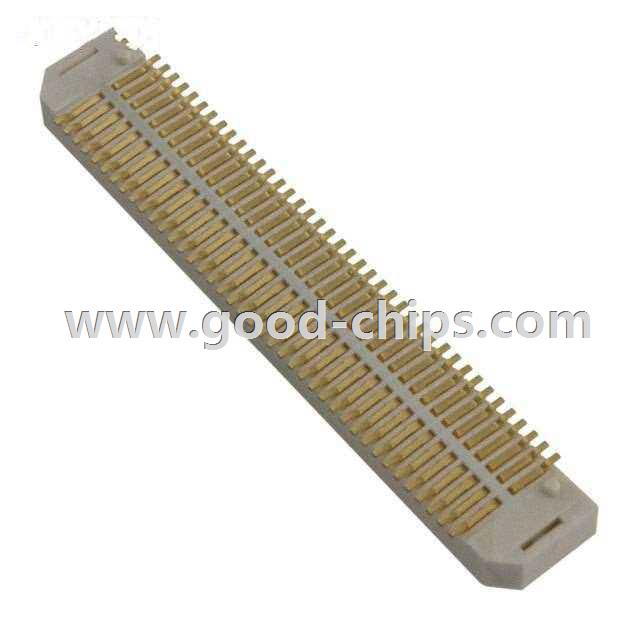

Manufacturer Part Number: | P08-080PLC-A-G |
---|---|
Manufacturer: | 3M |
Product Category: | Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | 80 Position Connector Plug, Center Strip Contacts Surface Mount Gold |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | P08-080PLC-A-G Datasheet |
Internal Part Number | 898-P08-080PLC-A-G | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Category | Connectors, Interconnects | |
Family | Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine | |
Manufacturer | 3M | |
Series | P08 | |
Packaging | Tube | |
Part Status | Active | |
Connector Type | Plug, Center Strip Contacts | |
Number of Positions | 80 | |
Pitch | 0.031" (0.80mm) | |
Number of Rows | 2 | |
Mounting Type | Surface Mount | |
Features | Board Guide | |
Contact Finish | Gold | |
Contact Finish Thickness | 8µin (0.20µm) | |
Mated Stacking Heights | 3mm, 6mm | |
Height Above Board | 0.107" (2.72mm) | |
Standard Package | 300 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | P08-080PLC-A-G | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
P08-080PLC-A-G is in stock for immediate shipping now. We are the distributor of 3M all series components. The condition of P08-080PLC-A-G is new and unused, you can buy P08-080PLC-A-G 3M with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for P08-080PLC-A-G.
