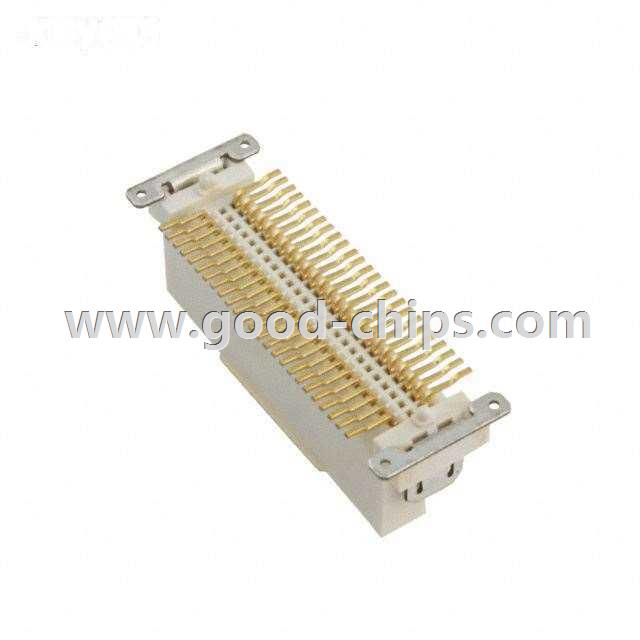

| Manufacturer Part Number: | P08-050HLC-E-G |
|---|---|
| Manufacturer: | 3M |
| Product Category: | Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | 50 Position Connector Self Mating, Non-Gendered Surface Mount Gold |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | P08-050HLC-E-G Datasheet |
| Internal Part Number | 898-P08-050HLC-E-G | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Obsolescence/ EOL | P8 Series 4/Dec/2013 | |
| Category | Connectors, Interconnects | |
| Family | Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine | |
| Manufacturer | 3M | |
| Series | P08 | |
| Packaging | Tube | |
| Part Status | Obsolete | |
| Connector Type | Self Mating, Non-Gendered | |
| Number of Positions | 50 | |
| Pitch | 0.031" (0.80mm) | |
| Number of Rows | 2 | |
| Mounting Type | Surface Mount | |
| Features | Board Guide, Solder Retention | |
| Contact Finish | Gold | |
| Contact Finish Thickness | 8µin (0.20µm) | |
| Mated Stacking Heights | 11.5mm | |
| Height Above Board | 0.329" (8.35mm) | |
| Standard Package | 300 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | P08-050HLC-E-G | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
P08-050HLC-E-G is in stock for immediate shipping now. We are the distributor of 3M all series components. The condition of P08-050HLC-E-G is new and unused, you can buy P08-050HLC-E-G 3M with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for P08-050HLC-E-G.
