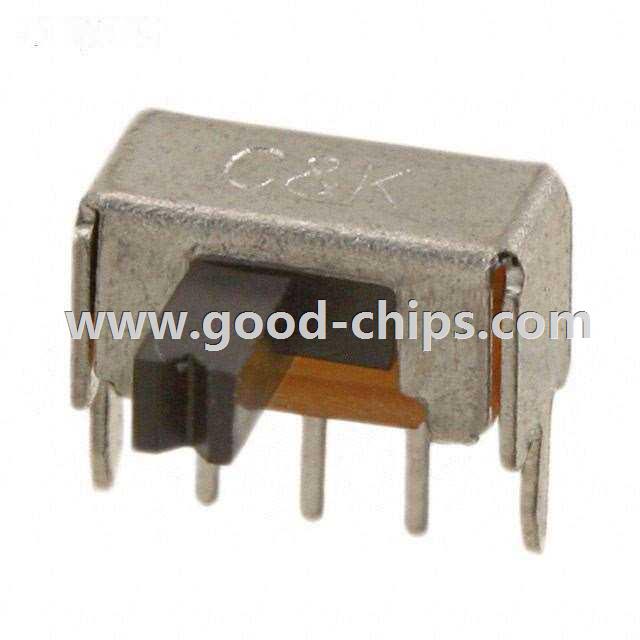

OS102011MA1QN1

OS102011MA1QN1
Manufacturer Part Number:OS102011MA1QN1
Manufacturer:
Product Category:Slide Switches
Available Quantity:31615 Pieces
Unit Price:Quote by Email
Description:Slide Switch SPDT Through Hole, Right Angle
Lead Free Status / RoHS Status:Lead free / RoHS Compliant
Moisture Sensitivity Level (MSL):1 (Unlimited)
Production Status (Lifecycle):In Production
Delivery Time:1-2 Days
Date Code (D/C):New
Datasheet Download: OS102011MA1QN1 Datasheet
OS102011MA1QN1´s Parameters
Internal Part Number898-OS102011MA1QN1
Manufacturer Lead time6-8 weeks
ConditionNew & Unused, Original Sealed
Product Training ModulesIntroduction to Electromechanical Switches
Building Automation Applications
Featured ProductIndustrial Switches – C&K Components | DigiKey
3D ModelOS102011MA1QN1.stp
OS102011MA1QN1.pdf
Online Catalog OS Series
CategorySwitches
FamilySlide Switches
ManufacturerC&K Components
SeriesOS
PackagingBulk
Part StatusActive
CircuitSPDT
Contact TimingNon-Shorting (BBM)
Switch FunctionOn-On
Current Rating100mA (DC)
Voltage Rating - AC-
Voltage Rating - DC12V
Actuator TypeStandard
Actuator Length4.00mm
Contact MaterialCopper Alloy
Contact FinishSilver
Mounting TypeThrough Hole, Right Angle
Termination StylePC Pin
FeaturesEpoxy Sealed Terminals
Actuator MaterialPolyoxymethylene (Acetal) (POM)
Switch Travel2.00mm
Operating Temperature-30°C ~ 70°C
Mechanical Life10,000 Cycles
Electrical Life10,000 Cycles
Operating Force-
Standard Package 300
Weight0.001 KG
ApplicationEmail for details
Replacement PartOS102011MA1QN1
Country of OriginUSA / JAPAN / Philippines / Malaysia
MOQ1 Piece
Picture / Image / PhotoSend via email

OS102011MA1QN1 is in stock for immediate shipping now. We are the distributor of C&K Components all series components. The condition of OS102011MA1QN1 is new and unused, you can buy OS102011MA1QN1 C&K Components with us at a very low price and quick delivery.

Please kindly send us an email if you have any demands for OS102011MA1QN1.
