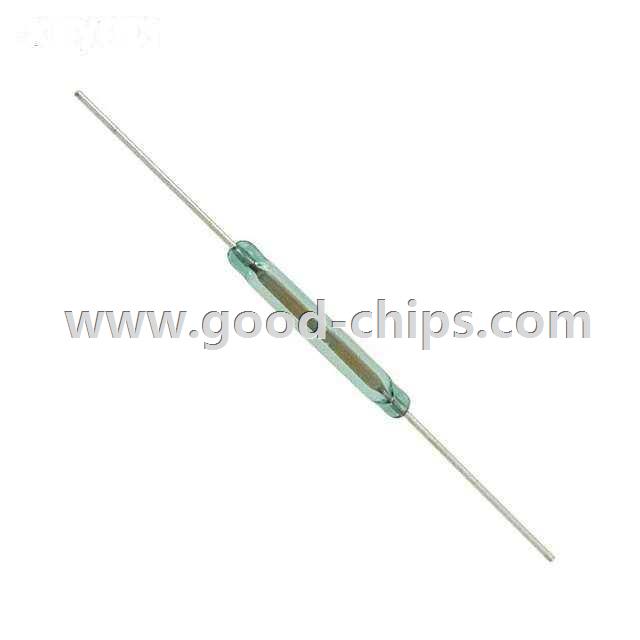

| Manufacturer Part Number: | ORD229-2530 |
|---|---|
| Manufacturer: | Standex-Meder Electronics |
| Product Category: | Magnetic, Reed Switches |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Glass Body Reed Switch SPST-NO 25 ~ 30AT Operate Range 50W 500mA (AC), 700mA (DC) 300V Through Hole |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | ORD229-2530 Datasheet |
| Internal Part Number | 898-ORD229-2530 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Reed Switch Technology Reed Switch Magnet Interaction Reed Sensors vs. Hall & Electromechanical Magnetic Mapping | |
| Online Catalog | ORD Series | |
| Category | Switches | |
| Family | Magnetic, Reed Switches | |
| Manufacturer | Standex-Meder Electronics | |
| Series | ORD | |
| Packaging | Bulk | |
| Part Status | Active | |
| Type | Glass Body | |
| Circuit | SPST-NO | |
| Operate Range | 25 ~ 30AT | |
| Release Range | - | |
| Current - Switching | 500mA (AC), 700mA (DC) | |
| Voltage - Switching AC | 300V | |
| Voltage - Switching DC | 350V | |
| Power - Rated | 50W | |
| Operate Time | 0.6ms | |
| Release Time | 0.05ms | |
| Mounting Type | Through Hole | |
| Termination Style | Axial | |
| Length - Overall | 2.181" (55.40mm) | |
| Size - Body | 0.108" Dia x 0.827" L (2.75mm x 21.00mm) | |
| Height Above Board | - | |
| Operating Temperature | - | |
| Capacitance | 0.50pF | |
| Current - Carry | 2.5A (AC/DC) | |
| Standard Package | 1,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | ORD229-2530 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
ORD229-2530 is in stock for immediate shipping now. We are the distributor of Standex-Meder Electronics all series components. The condition of ORD229-2530 is new and unused, you can buy ORD229-2530 Standex-Meder Electronics with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ORD229-2530.
