.jpg)
| Manufacturer Part Number: | OPA564AIDWD |
|---|---|
| Manufacturer: | Texas Instruments |
| Product Category: | Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps |
| Available Quantity: | 9090 Pieces |
| Unit Price: | Quote by Email |
| Description: | General Purpose Amplifier 1 Circuit 20-HSOP |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 2 (1 Year) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | OPA564AIDWD Datasheet |
| Internal Part Number | 898-OPA564AIDWD | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Featured Product | Create your power design now with TI’s WEBENCH® Designer | |
| Online Catalog | General Purpose | |
| Category | Integrated Circuits (ICs) | |
| Family | Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps | |
| Manufacturer | Texas Instruments | |
| Series | - | |
| Packaging | Tube | |
| Part Status | Active | |
| Amplifier Type | General Purpose | |
| Number of Circuits | 1 | |
| Output Type | - | |
| Slew Rate | 40 V/µs | |
| Gain Bandwidth Product | 17MHz | |
| -3db Bandwidth | - | |
| Current - Input Bias | 10pA | |
| Voltage - Input Offset | 2mV | |
| Current - Supply | 39mA | |
| Current - Output / Channel | 1.5A | |
| Voltage - Supply, Single/Dual (±) | 7 V ~ 24 V, ±3.5 V ~ 12 V | |
| Operating Temperature | -40°C ~ 85°C | |
| Mounting Type | Surface Mount | |

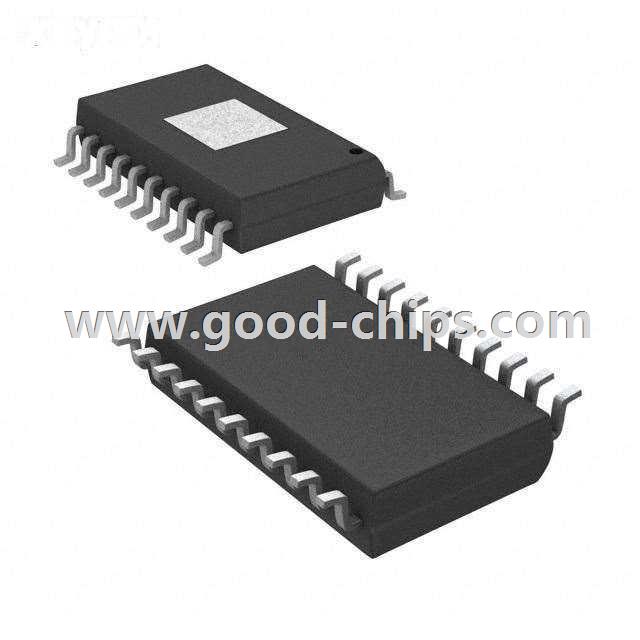

| Package / Case | 20-SOIC (0.295", 7.50mm Width) Exposed Pad | |
| Supplier Device Package | 20-HSOP | |
| Standard Package | 25 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | OPA564AIDWD | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
OPA564AIDWD is in stock for immediate shipping now. We are the distributor of Texas Instruments all series components. The condition of OPA564AIDWD is new and unused, you can buy OPA564AIDWD Texas Instruments with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for OPA564AIDWD.
