| Manufacturer Part Number: | OPA541AM |
|---|---|
| Manufacturer: | Texas Instruments |
| Product Category: | Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Power Amplifier 1 Circuit HERMETIC TO-3, Isolated Case |
| Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | OPA541AM Datasheet |
| Internal Part Number | 898-OPA541AM | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Category | Integrated Circuits (ICs) | |
| Family | Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps | |
| Manufacturer | Texas Instruments | |
| Series | - | |
| Packaging | Tube | |
| Part Status | Active | |
| Amplifier Type | Power | |
| Number of Circuits | 1 | |
| Output Type | - | |
| Slew Rate | 10 V/µs | |
| Gain Bandwidth Product | 1.6MHz | |
| -3db Bandwidth | - | |
| Current - Input Bias | 4pA | |
| Voltage - Input Offset | 2mV | |
| Current - Supply | 20mA | |
| Current - Output / Channel | 10A | |
| Voltage - Supply, Single/Dual (±) | 20 V ~ 70 V, ±10 V ~ 35 V | |
| Operating Temperature | -25°C ~ 85°C | |
| Mounting Type | Through Hole | |

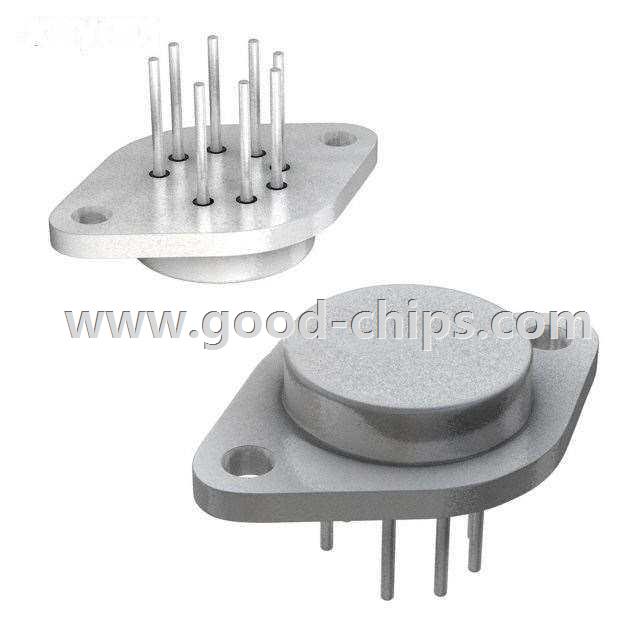

| Package / Case | TO-3-8 | |
| Supplier Device Package | HERMETIC TO-3, Isolated Case | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | OPA541AM | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
OPA541AM is in stock for immediate shipping now. We are the distributor of Texas Instruments all series components. The condition of OPA541AM is new and unused, you can buy OPA541AM Texas Instruments with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for OPA541AM.
