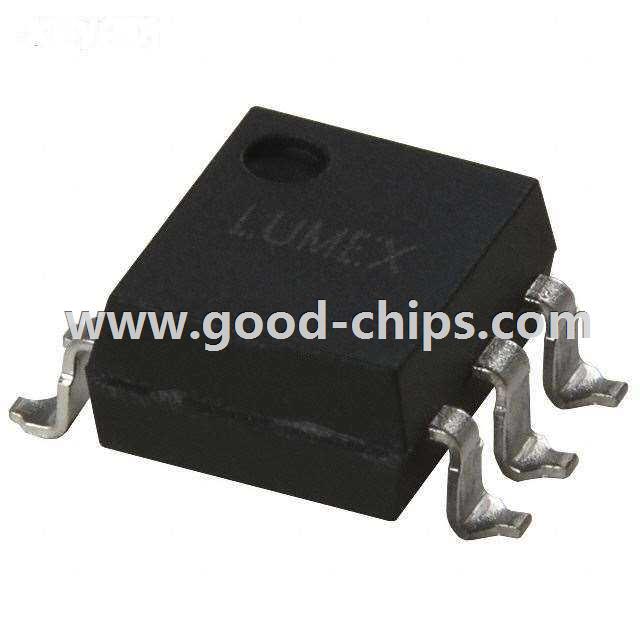

| Manufacturer Part Number: | OCP-PCP116-TR |
|---|---|
| Manufacturer: | Lumex Opto/Components Inc. |
| Product Category: | Optoisolators - Logic Output |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Logic Output Optoisolator Open Collector 5000Vrms 1 Channel 6-SMD |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | OCP-PCP116-TR Datasheet |
| Internal Part Number | 898-OCP-PCP116-TR | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Isolators | |
| Family | Optoisolators - Logic Output | |
| Manufacturer | Lumex Opto/Components Inc. | |
| Series | - | |
| Packaging | Cut Tape (CT) | |
| Part Status | Discontinued | |
| Number of Channels | 1 | |
| Inputs - Side 1/Side 2 | 1/0 | |
| Voltage - Isolation | 5000Vrms | |
| Common Mode Transient Immunity (Min) | - | |
| Input Type | DC | |
| Output Type | Open Collector | |
| Current - Output / Channel | 50mA | |
| Data Rate | - | |
| Propagation Delay tpLH / tpHL (Max) | 9µs, 15µs | |
| Rise / Fall Time (Typ) | 100ns, 50ns | |
| Voltage - Forward (Vf) (Typ) | 1.2V | |
| Current - DC Forward (If) (Max) | 50mA | |
| Voltage - Supply | 4.5 V ~ 17 V | |
| Operating Temperature | -25°C ~ 85°C | |
| Mounting Type | Surface Mount | |
| Package / Case | 6-SMD, Gull Wing | |
| Supplier Device Package | 6-SMD | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | OCP-PCP116-TR | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
OCP-PCP116-TR is in stock for immediate shipping now. We are the distributor of Lumex Opto/Components Inc. all series components. The condition of OCP-PCP116-TR is new and unused, you can buy OCP-PCP116-TR Lumex Opto/Components Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for OCP-PCP116-TR.
