| Manufacturer Part Number: | NZT902 |
|---|---|
| Manufacturer: | Fairchild Semiconductor |
| Product Category: | Transistors - Bipolar (BJT) - Single |
| Available Quantity: | 13010 Pieces |
| Unit Price: | Quote by Email |
| Description: | TRANS NPN 90V 3A SOT-223 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | NZT902 Datasheet |
| Internal Part Number | 898-NZT902 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | NPN Transistors | |
| Category | Discrete Semiconductor Products | |
| Family | Transistors - Bipolar (BJT) - Single | |
| Manufacturer | Fairchild Semiconductor | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Transistor Type | NPN | |
| Current - Collector (Ic) (Max) | 3A | |
| Voltage - Collector Emitter Breakdown (Max) | 90V | |
| Vce Saturation (Max) @ Ib, Ic | 600mV @ 300mA, 3A | |
| Current - Collector Cutoff (Max) | 100nA (ICBO) | |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 80 @ 1A, 2V | |
| Power - Max | 1W | |
| Frequency - Transition | 75MHz | |
| Mounting Type | Surface Mount | |

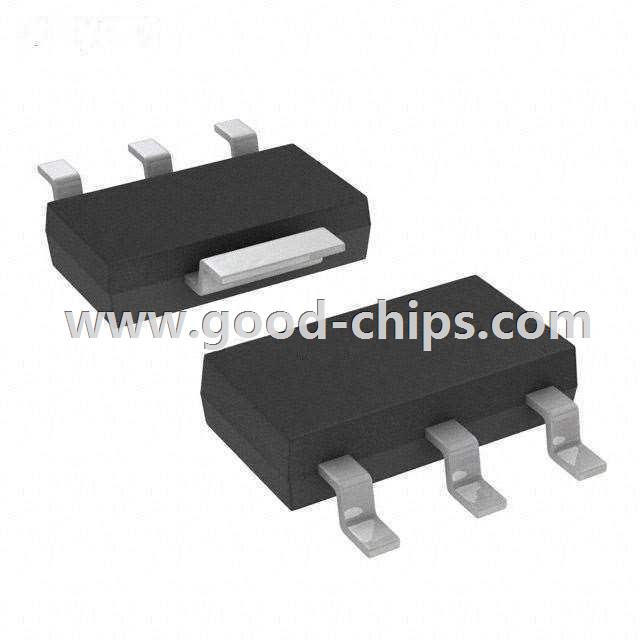

| Package / Case | TO-261-4, TO-261AA | |
| Supplier Device Package | SOT-223-4 | |
| Standard Package | 4,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | NZT902 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
NZT902 is in stock for immediate shipping now. We are the distributor of Fairchild Semiconductor all series components. The condition of NZT902 is new and unused, you can buy NZT902 Fairchild Semiconductor with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for NZT902.
