| Manufacturer Part Number: | NVT2004TL,115 |
|---|---|
| Manufacturer: | NXP Semiconductors |
| Product Category: | Logic - Translators, Level Shifters |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Voltage Level Translator Bidirectional 1 Circuit 4 Channel 12-HXSON (1.35x2.5) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | NVT2004TL,115 Datasheet |
| Internal Part Number | 898-NVT2004TL,115 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Obsolescence/ EOL | Multiple Devices 01/Jul/2014 MCU Dip Supply Situation 12/May/2015 | |
| PCN Assembly/Origin | Wafer Site Transfer 22/Jun/2014 | |
| PCN Packaging | Date Code Extended 18/Jul/2013 Leadframe Material Update 20/Mar/2014 | |
| Category | Integrated Circuits (ICs) | |
| Family | Logic - Translators, Level Shifters | |
| Manufacturer | NXP Semiconductors | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Obsolete | |
| Translator Type | Voltage Level | |
| Channel Type | Bidirectional | |
| Number of Circuits | 1 | |
| Channels per Circuit | 4 | |
| Voltage - VCCA | 1 V ~ 3.6 V | |
| Voltage - VCCB | 1.8 V ~ 5.5 V | |
| Input Signal | - | |
| Output Signal | - | |
| Output Type | Open Drain, Push-Pull | |
| Data Rate | - | |
| Operating Temperature | -40°C ~ 85°C (TA) | |
| Features | Auto-Direction Sensing | |
| Mounting Type | Surface Mount | |

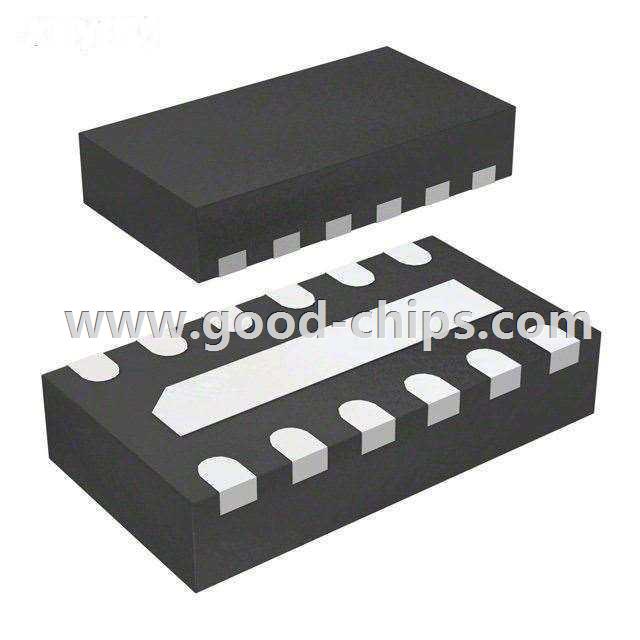

| Package / Case | 12-XFDFN Exposed Pad | |
| Supplier Device Package | 12-HXSON (1.35x2.5) | |
| Standard Package | 4,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | NVT2004TL,115 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
NVT2004TL,115 is in stock for immediate shipping now. We are the distributor of NXP Semiconductors all series components. The condition of NVT2004TL,115 is new and unused, you can buy NVT2004TL,115 NXP Semiconductors with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for NVT2004TL,115.
