Manufacturer Part Number: | NVMFD5853NLT1G |
---|---|
Manufacturer: | ON Semiconductor |
Product Category: | Transistors - FETs, MOSFETs - Arrays |
Available Quantity: | 10490 Pieces |
Unit Price: | Quote by Email |
Description: | MOSFET 2N-CH 40V 12A SO8FL |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | NVMFD5853NLT1G Datasheet |
Internal Part Number | 898-NVMFD5853NLT1G | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Online Catalog | N-Channel Logic Level Gate FETs | |
Category | Discrete Semiconductor Products | |
Family | Transistors - FETs, MOSFETs - Arrays | |
Manufacturer | ON Semiconductor | |
Series | - | |
Packaging | Cut Tape (CT) | |
Part Status | Active | |
FET Type | 2 N-Channel (Dual) | |
FET Feature | Logic Level Gate | |
Drain to Source Voltage (Vdss) | 40V | |
Current - Continuous Drain (Id) @ 25°C | 12A | |
Rds On (Max) @ Id, Vgs | 10 mOhm @ 15A, 10V | |
Vgs(th) (Max) @ Id | 2.4V @ 250µA | |
Gate Charge (Qg) @ Vgs | 23nC @ 10V | |
Input Capacitance (Ciss) @ Vds | 1100pF @ 25V | |
Power - Max | 3W | |
Operating Temperature | -55°C ~ 175°C (TJ) | |
Mounting Type | Surface Mount | |

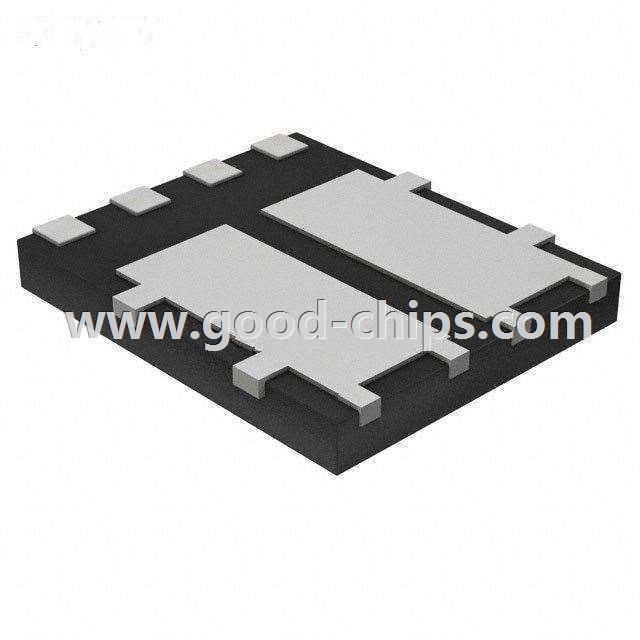

Package / Case | 8-PowerTDFN | |
Supplier Device Package | 8-DFN (5x6) Dual Flag (SO8FL-Dual-Asymmetrical) | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | NVMFD5853NLT1G | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
NVMFD5853NLT1G is in stock for immediate shipping now. We are the distributor of ON Semiconductor all series components. The condition of NVMFD5853NLT1G is new and unused, you can buy NVMFD5853NLT1G ON Semiconductor with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for NVMFD5853NLT1G.
