| Manufacturer Part Number: | NUF9002FCT1G |
|---|---|
| Manufacturer: | ON Semiconductor |
| Product Category: | EMI/RFI Filters (LC, RC Networks) |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | RC (Pi) EMI Filter 2nd Order Low Pass 10 Channel R = 100 Ohms, C = 28pF (Total) 25-UFBGA, FCBGA |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | NUF9002FCT1G Datasheet |
| Internal Part Number | 898-NUF9002FCT1G | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Obsolescence/ EOL | Multiple Devices 30/Mar/2012 | |
| Category | Filters | |
| Family | EMI/RFI Filters (LC, RC Networks) | |
| Manufacturer | ON Semiconductor | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Obsolete | |
| Type | Low Pass | |
| Filter Order | 2nd | |
| Technology | RC (Pi) | |
| Number of Channels | 10 | |
| Center / Cutoff Frequency | 110MHz (Cutoff) | |
| Attenuation Value | -25dB @ 900MHz ~ 3GHz | |
| Resistance - Channel (Ohms) | 100 | |
| Current | - | |
| Values | R = 100 Ohms, C = 28pF (Total) | |
| ESD Protection | Yes | |
| Operating Temperature | -40°C ~ 85°C | |
| Applications | Data Lines for Mobile Devices | |
| Voltage - Rated | - | |
| Mounting Type | Surface Mount | |

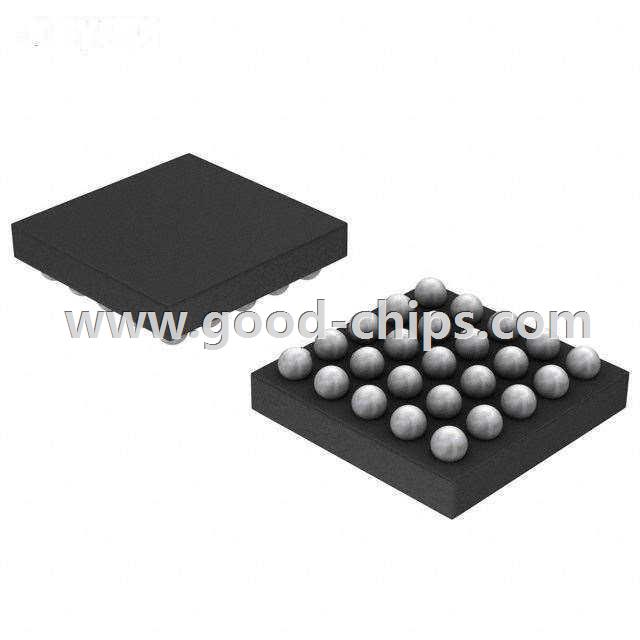

| Package / Case | 25-UFBGA, FCBGA | |
| Size / Dimension | 0.104" L x 0.104" W (2.65mm x 2.65mm) | |
| Height | 0.026" (0.65mm) | |
| Standard Package | 3,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | NUF9002FCT1G | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
NUF9002FCT1G is in stock for immediate shipping now. We are the distributor of ON Semiconductor all series components. The condition of NUF9002FCT1G is new and unused, you can buy NUF9002FCT1G ON Semiconductor with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for NUF9002FCT1G.
