| Manufacturer Part Number: | NUF8610MNTXG |
|---|---|
| Manufacturer: | ON Semiconductor |
| Product Category: | EMI/RFI Filters (LC, RC Networks) |
| Available Quantity: | 13010 Pieces |
| Unit Price: | Quote by Email |
| Description: | RC (Pi) EMI Filter 2nd Order Low Pass 8 Channel R = 50 Ohms, C = 8.5pF 16-VFDFN Exposed Pad |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | NUF8610MNTXG Datasheet |
| Internal Part Number | 898-NUF8610MNTXG | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Assembly/Origin | DFN Pkg Filters 18/Jun/2013 | |
| Online Catalog | NUF8610MN | |
| Category | Filters | |
| Family | EMI/RFI Filters (LC, RC Networks) | |
| Manufacturer | ON Semiconductor | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Type | Low Pass | |
| Filter Order | 2nd | |
| Technology | RC (Pi) | |
| Number of Channels | 8 | |
| Center / Cutoff Frequency | 260MHz (Cutoff) | |
| Attenuation Value | -15dB @ 800MHz ~ 2.2GHz | |
| Resistance - Channel (Ohms) | 50 | |
| Current | - | |
| Values | R = 50 Ohms, C = 8.5pF | |
| ESD Protection | Yes | |
| Operating Temperature | -40°C ~ 85°C | |
| Applications | Data Lines for Mobile Devices | |
| Voltage - Rated | - | |
| Mounting Type | Surface Mount | |

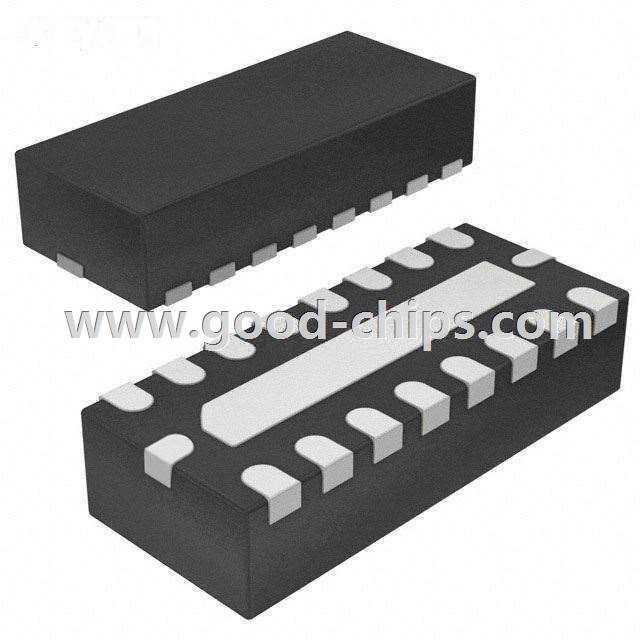

| Package / Case | 16-VFDFN Exposed Pad | |
| Size / Dimension | 0.157" L x 0.063" W (4.00mm x 1.60mm) | |
| Height | 0.039" (1.00mm) | |
| Standard Package | 4,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | NUF8610MNTXG | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
NUF8610MNTXG is in stock for immediate shipping now. We are the distributor of ON Semiconductor all series components. The condition of NUF8610MNTXG is new and unused, you can buy NUF8610MNTXG ON Semiconductor with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for NUF8610MNTXG.
