Manufacturer Part Number: | NUF4107FCT1 |
---|---|
Manufacturer: | ON Semiconductor |
Product Category: | EMI/RFI Filters (LC, RC Networks) |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | RC (Pi) EMI Filter 2nd Order Low Pass 4 Channel R = 100 Ohms, C = 60pF (Total) 17-WFBGA, FCBGA |
Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
Production Status (Lifecycle): | Obsolete / Discontinued |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | NUF4107FCT1 Datasheet |
Internal Part Number | 898-NUF4107FCT1 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Category | Filters | |
Family | EMI/RFI Filters (LC, RC Networks) | |
Manufacturer | ON Semiconductor | |
Series | - | |
Packaging | Tape & Reel (TR) | |
Part Status | Obsolete | |
Type | Low Pass | |
Filter Order | 2nd | |
Technology | RC (Pi) | |
Number of Channels | 4 | |
Center / Cutoff Frequency | - | |
Attenuation Value | -35dB @ 800MHz ~ 2.2GHz | |
Resistance - Channel (Ohms) | 100 | |
Current | - | |
Values | R = 100 Ohms, C = 60pF (Total) | |
ESD Protection | Yes | |
Operating Temperature | -40°C ~ 85°C | |
Applications | Data Lines for Mobile Devices | |
Voltage - Rated | - | |
Mounting Type | Surface Mount | |

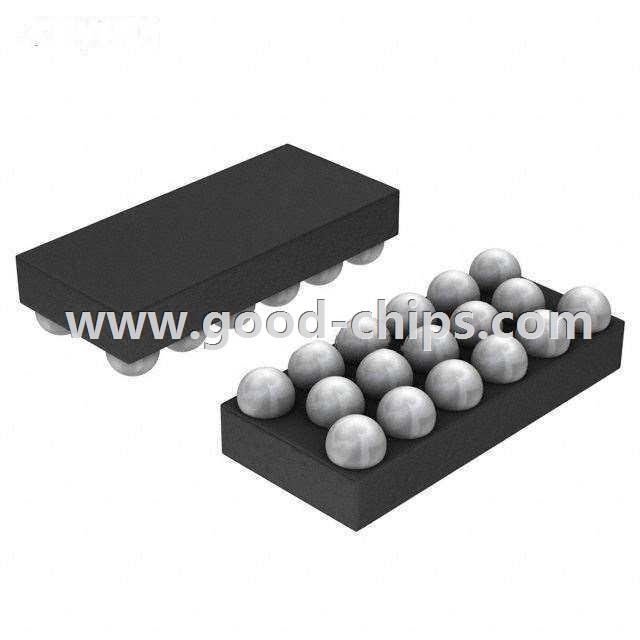

Package / Case | 17-WFBGA, FCBGA | |
Size / Dimension | 0.117" L x 0.052" W (2.96mm x 1.33mm) | |
Height | 0.029" (0.74mm) | |
Standard Package | 3,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | NUF4107FCT1 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
NUF4107FCT1 is in stock for immediate shipping now. We are the distributor of ON Semiconductor all series components. The condition of NUF4107FCT1 is new and unused, you can buy NUF4107FCT1 ON Semiconductor with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for NUF4107FCT1.
