| Manufacturer Part Number: | NTTFS4821NTAG |
|---|---|
| Manufacturer: | ON Semiconductor |
| Product Category: | Transistors - FETs, MOSFETs - Single |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | MOSFET N-CH 30V 7.5A 8WDFN |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | NTTFS4821NTAG Datasheet |
| Internal Part Number | 898-NTTFS4821NTAG | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Discrete Semiconductor Products | |
| Family | Transistors - FETs, MOSFETs - Single | |
| Manufacturer | ON Semiconductor | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| FET Type | MOSFET N-Channel, Metal Oxide | |
| FET Feature | Standard | |
| Drain to Source Voltage (Vdss) | 30V | |
| Current - Continuous Drain (Id) @ 25°C | 7.5A (Ta), 57A (Tc) | |
| Rds On (Max) @ Id, Vgs | 7 mOhm @ 20A, 10V | |
| Vgs(th) (Max) @ Id | 2.5V @ 250µA | |
| Gate Charge (Qg) @ Vgs | 24nC @ 11.5V | |
| Input Capacitance (Ciss) @ Vds | 1755pF @ 12V | |
| Power - Max | 660mW | |
| Operating Temperature | -55°C ~ 150°C (TJ) | |
| Mounting Type | Surface Mount | |

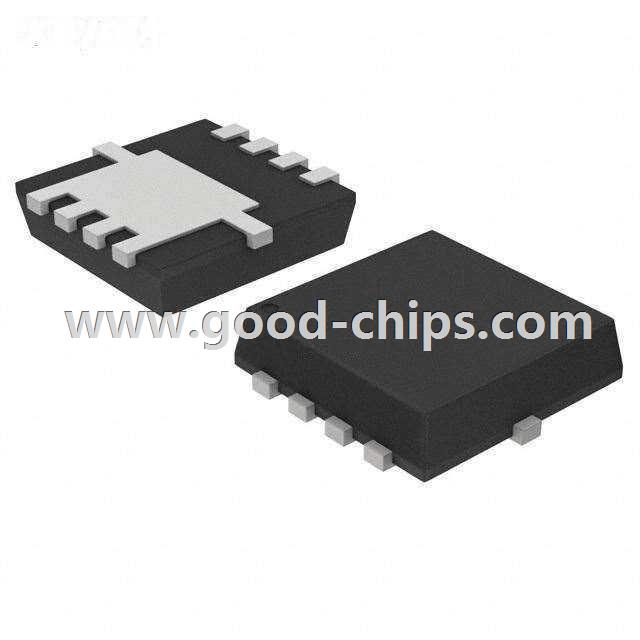

| Package / Case | 8-PowerWDFN | |
| Supplier Device Package | 8-WDFN (3.3x3.3) | |
| Standard Package | 1,500 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | NTTFS4821NTAG | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
NTTFS4821NTAG is in stock for immediate shipping now. We are the distributor of ON Semiconductor all series components. The condition of NTTFS4821NTAG is new and unused, you can buy NTTFS4821NTAG ON Semiconductor with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for NTTFS4821NTAG.
