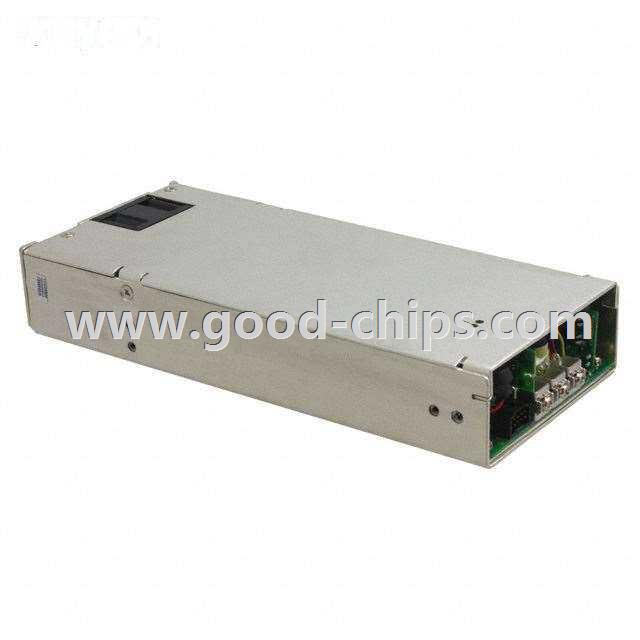

| Manufacturer Part Number: | NTS505-M-CEF |
|---|---|
| Manufacturer: | Artesyn Embedded Technologies |
| Product Category: | AC DC Converters |
| Available Quantity: | 9014 Pieces |
| Unit Price: | Quote by Email |
| Description: | AC/DC CONVERTER 24V 200W |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | NTS505-M-CEF Datasheet |
| Internal Part Number | 898-NTS505-M-CEF | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Packaging | CSA Marking 20/Sep/2013 | |
| Online Catalog | NTS500-M Series | |
| Category | Power Supplies - External/Internal (Off-Board) | |
| Family | AC DC Converters | |
| Manufacturer | Artesyn Embedded Technologies | |
| Series | NTS500 | |
| Part Status | Active | |
| Type | Enclosed | |
| Number of Outputs | 1 | |
| Voltage - Input | 85 ~ 264 VAC | |
| Voltage - Output 1 | 24V | |
| Voltage - Output 2 | - | |
| Voltage - Output 3 | - | |
| Voltage - Output 4 | - | |
| Current - Output (Max) | 8.3A | |
| Power (Watts) | 200W (500W Forced Air) | |
| Applications | ITE (Commercial) | |
| Voltage - Isolation | - | |
| Efficiency | 85% | |
| Operating Temperature | 0°C ~ 70°C (With Derating) | |
| Features | Adjustable Output, I²C™ Interface, Load Sharing, PFC, PMBus™, Remote On/Off, Remote Sense, Standby Output, Universal Input | |
| Mounting Type | Chassis Mount | |
| Size / Dimension | 9.15" L x 4.00" W x 1.61" H (232.3mm x 101.6mm x 40.9mm) | |
| Minimum Load Required | No | |
| Approvals | CB, CE | |
| Power (Watts) - Max | 200W (500W Forced Air) | |
| Standard Package | 36 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | NTS505-M-CEF | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
NTS505-M-CEF is in stock for immediate shipping now. We are the distributor of Artesyn Embedded Technologies all series components. The condition of NTS505-M-CEF is new and unused, you can buy NTS505-M-CEF Artesyn Embedded Technologies with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for NTS505-M-CEF.
