| Manufacturer Part Number: | NTLUD3A50PZTAG |
|---|---|
| Manufacturer: | ON Semiconductor |
| Product Category: | Transistors - FETs, MOSFETs - Arrays |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | MOSFET 2P-CH 20V 2.8A UDFN |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | NTLUD3A50PZTAG Datasheet |
| Internal Part Number | 898-NTLUD3A50PZTAG | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Packaging | Covering Tape/Material Chg 20/May/2016 | |
| Online Catalog | P-Channel Logic Level Gate FETs | |
| Category | Discrete Semiconductor Products | |
| Family | Transistors - FETs, MOSFETs - Arrays | |
| Manufacturer | ON Semiconductor | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| FET Type | 2 P-Channel (Dual) | |
| FET Feature | Logic Level Gate | |
| Drain to Source Voltage (Vdss) | 20V | |
| Current - Continuous Drain (Id) @ 25°C | 2.8A | |
| Rds On (Max) @ Id, Vgs | 50 mOhm @ 4A, 4.5V | |
| Vgs(th) (Max) @ Id | 1V @ 250µA | |
| Gate Charge (Qg) @ Vgs | 10.4nC @ 4.5V | |
| Input Capacitance (Ciss) @ Vds | 920pF @ 15V | |
| Power - Max | 500mW | |
| Operating Temperature | -55°C ~ 150°C (TJ) | |
| Mounting Type | Surface Mount | |

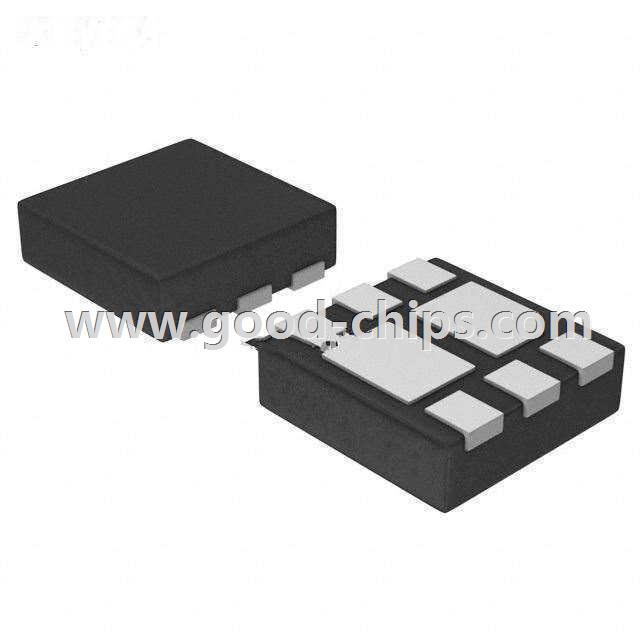

| Package / Case | 6-UDFN Exposed Pad | |
| Supplier Device Package | 6-UDFN (2x2) | |
| Standard Package | 3,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | NTLUD3A50PZTAG | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
NTLUD3A50PZTAG is in stock for immediate shipping now. We are the distributor of ON Semiconductor all series components. The condition of NTLUD3A50PZTAG is new and unused, you can buy NTLUD3A50PZTAG ON Semiconductor with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for NTLUD3A50PZTAG.
