| Manufacturer Part Number: | NTLLD4901NFTWG |
|---|---|
| Manufacturer: | ON Semiconductor |
| Product Category: | Transistors - FETs, MOSFETs - Arrays |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | MOSFET 2N-CH 30V 5.5A/6.3A WDFN8 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | NTLLD4901NFTWG Datasheet |
| Internal Part Number | 898-NTLLD4901NFTWG | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Design/Specification | Copper Wire Conversion 24/Feb/2015 | |
| PCN Packaging | Covering Tape/Material Chg 20/May/2016 | |
| Category | Discrete Semiconductor Products | |
| Family | Transistors - FETs, MOSFETs - Arrays | |
| Manufacturer | ON Semiconductor | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| FET Type | 2 N-Channel (Dual) | |
| FET Feature | Logic Level Gate | |
| Drain to Source Voltage (Vdss) | 30V | |
| Current - Continuous Drain (Id) @ 25°C | 5.5A, 6.3A | |
| Rds On (Max) @ Id, Vgs | 17.4 mOhm @ 9A, 10V | |
| Vgs(th) (Max) @ Id | 2.2V @ 250µA | |
| Gate Charge (Qg) @ Vgs | 12nC @ 10V | |
| Input Capacitance (Ciss) @ Vds | 605pF @ 15V | |
| Power - Max | 800mW, 810mW | |
| Operating Temperature | -55°C ~ 150°C (TJ) | |
| Mounting Type | Surface Mount | |

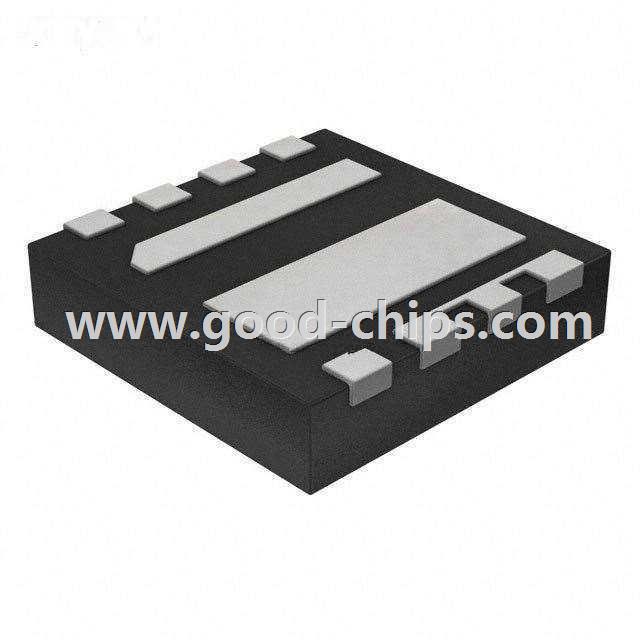

| Package / Case | 8-WDFN Exposed Pad | |
| Supplier Device Package | 8-WDFN (3x3) | |
| Standard Package | 3,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | NTLLD4901NFTWG | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
NTLLD4901NFTWG is in stock for immediate shipping now. We are the distributor of ON Semiconductor all series components. The condition of NTLLD4901NFTWG is new and unused, you can buy NTLLD4901NFTWG ON Semiconductor with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for NTLLD4901NFTWG.
