| Manufacturer Part Number: | NTD4302G |
|---|---|
| Manufacturer: | ON Semiconductor |
| Product Category: | Transistors - FETs, MOSFETs - Single |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | MOSFET N-CH 30V 8.4A DPAK |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | NTD4302G Datasheet |
| Internal Part Number | 898-NTD4302G | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Obsolescence/ EOL | Multiple Devices 21/Jan/2010 | |
| Category | Discrete Semiconductor Products | |
| Family | Transistors - FETs, MOSFETs - Single | |
| Manufacturer | ON Semiconductor | |
| Series | - | |
| Packaging | Tube | |
| Part Status | Obsolete | |
| FET Type | MOSFET N-Channel, Metal Oxide | |
| FET Feature | Logic Level Gate | |
| Drain to Source Voltage (Vdss) | 30V | |
| Current - Continuous Drain (Id) @ 25°C | 8.4A (Ta), 68A (Tc) | |
| Rds On (Max) @ Id, Vgs | 10 mOhm @ 20A, 10V | |
| Vgs(th) (Max) @ Id | 3V @ 250µA | |
| Gate Charge (Qg) @ Vgs | 80nC @ 10V | |
| Input Capacitance (Ciss) @ Vds | 2400pF @ 24V | |
| Power - Max | 1.04W | |
| Operating Temperature | -55°C ~ 150°C (TJ) | |
| Mounting Type | Surface Mount | |

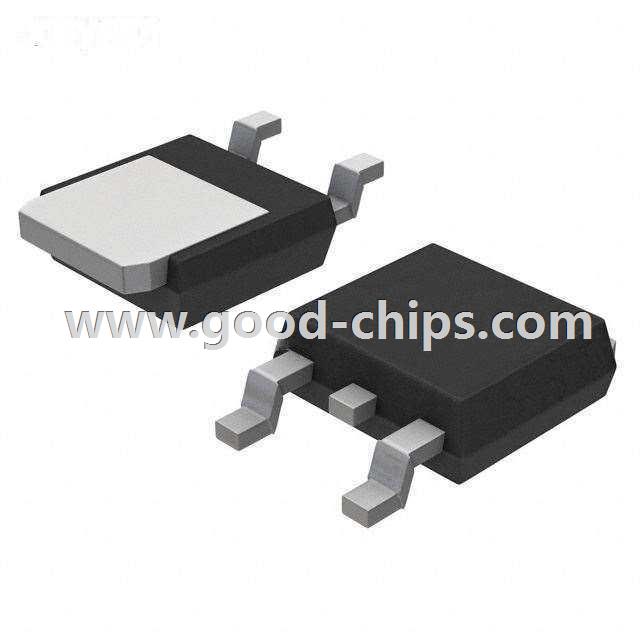

| Package / Case | TO-252-3, DPak (2 Leads + Tab), SC-63 | |
| Supplier Device Package | DPAK | |
| Standard Package | 75 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | NTD4302G | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
NTD4302G is in stock for immediate shipping now. We are the distributor of ON Semiconductor all series components. The condition of NTD4302G is new and unused, you can buy NTD4302G ON Semiconductor with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for NTD4302G.
