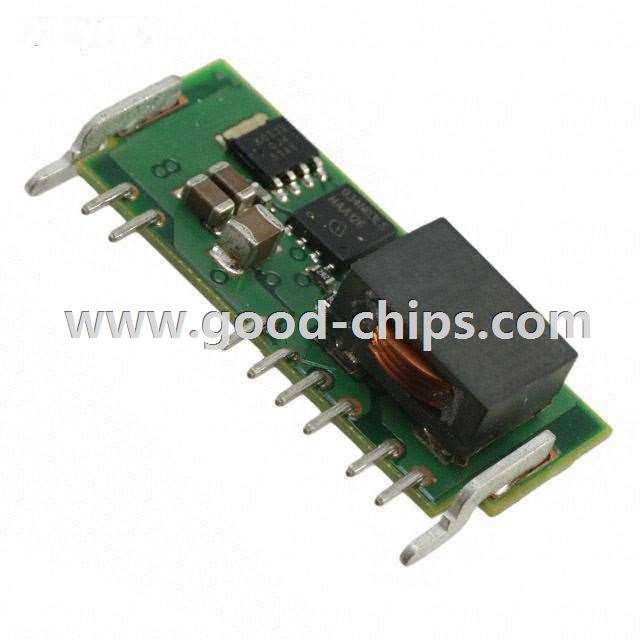

| Manufacturer Part Number: | NSR020A0X543Z |
|---|---|
| Manufacturer: | GE Critical Power |
| Product Category: | DC DC Converters |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | DC/DC CONVERT 0.59-6V 20A 120W |
| Lead Free Status / RoHS Status: | Contains lead / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 2A (4 Weeks) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | NSR020A0X543Z Datasheet |
| Internal Part Number | 898-NSR020A0X543Z | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Manufacturer Product Page | Power Module Wizard™ | |
| HTML Datasheet | Naos Raptor 20A.html | |
| Category | Power Supplies - Board Mount | |
| Family | DC DC Converters | |
| Manufacturer | GE Critical Power | |
| Series | Naos Raptor | |
| Packaging | Tray | |
| Part Status | Active | |
| Type | Non-Isolated PoL Module | |
| Number of Outputs | 1 | |
| Voltage - Input (Min) | 4.5V | |
| Voltage - Input (Max) | 14.4V | |
| Voltage - Output 1 | 0.59 ~ 6 V | |
| Voltage - Output 2 | - | |
| Voltage - Output 3 | - | |
| Current - Output (Max) | 20A | |
| Power (Watts) - Manufacture Series | 120W | |
| Voltage - Isolation | - | |
| Applications | ITE (Commercial) | |
| Features | Remote On/Off, OCP, OTP, UVLO | |
| Mounting Type | Through Hole | |
| Package / Case | 10-SIP Module | |
| Size / Dimension | 1.45" L x 0.36" W x 0.61" H (36.8mm x 9.2mm x 15.5mm) | |
| Operating Temperature | -40°C ~ 85°C | |
| Efficiency | 95% | |
| Power (Watts) - Max | 120W | |
| Standard Package | 160 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | NSR020A0X543Z | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
NSR020A0X543Z is in stock for immediate shipping now. We are the distributor of GE Critical Power all series components. The condition of NSR020A0X543Z is new and unused, you can buy NSR020A0X543Z GE Critical Power with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for NSR020A0X543Z.
