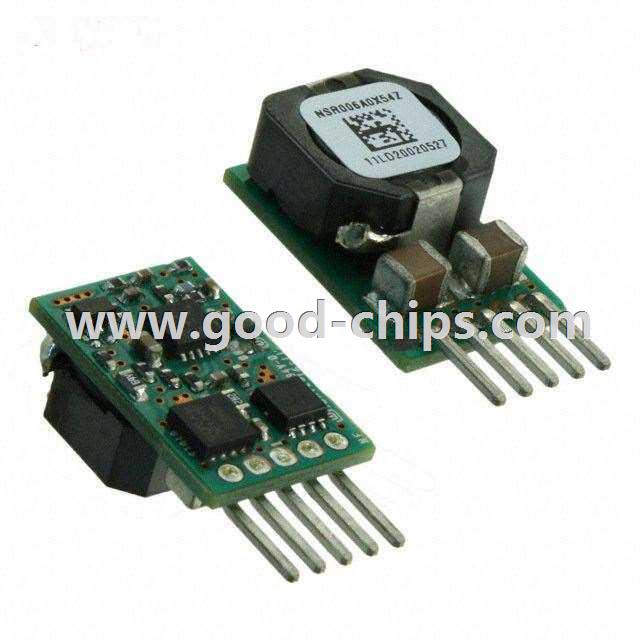

| Manufacturer Part Number: | NSR006A0X54Z |
|---|---|
| Manufacturer: | GE Critical Power |
| Product Category: | DC DC Converters |
| Available Quantity: | 9064 Pieces |
| Unit Price: | Quote by Email |
| Description: | CONVERTER DC/DC 6V 6A OUT |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | NSR006A0X54Z Datasheet |
| Internal Part Number | 898-NSR006A0X54Z | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Point-of-Load Power Point of Load (POL) Products End-to-End Power Solutions for the Building, Box and Board | |
| Manufacturer Product Page | Power Module Wizard™ | |
| Online Catalog | Naos Raptor Series | |
| Category | Power Supplies - Board Mount | |
| Family | DC DC Converters | |
| Manufacturer | GE Critical Power | |
| Series | Naos Raptor | |
| Packaging | Bulk | |
| Part Status | Active | |
| Type | Non-Isolated PoL Module | |
| Number of Outputs | 1 | |
| Voltage - Input (Min) | 4.5V | |
| Voltage - Input (Max) | 14V | |
| Voltage - Output 1 | 0.6 ~ 6 V | |
| Voltage - Output 2 | - | |
| Voltage - Output 3 | - | |
| Current - Output (Max) | 6A | |
| Power (Watts) - Manufacture Series | 36W | |
| Voltage - Isolation | - | |
| Applications | ITE (Commercial) | |
| Features | Remote On/Off, OCP, OTP, UVLO | |
| Mounting Type | Through Hole | |
| Package / Case | 5-SIP Module | |
| Size / Dimension | 0.41" L x 0.31" W x 0.65" H (10.4mm x 7.9mm x 16.5mm) | |
| Operating Temperature | -40°C ~ 85°C | |
| Efficiency | 95.1% | |
| Power (Watts) - Max | 36W | |
| Standard Package | 315 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | NSR006A0X54Z | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
NSR006A0X54Z is in stock for immediate shipping now. We are the distributor of GE Critical Power all series components. The condition of NSR006A0X54Z is new and unused, you can buy NSR006A0X54Z GE Critical Power with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for NSR006A0X54Z.
