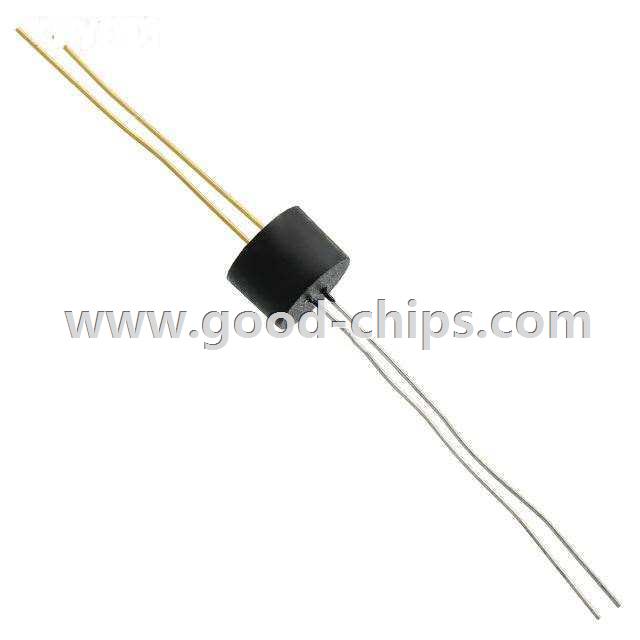

| Manufacturer Part Number: | NSL-28 |
|---|---|
| Manufacturer: | Luna Optoelectronics |
| Product Category: | Special Purpose |
| Available Quantity: | 9431 Pieces |
| Unit Price: | Quote by Email |
| Description: | Optoisolator Photocell Optocoupler 1 Channel |
| Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | NSL-28 Datasheet |
| Internal Part Number | 898-NSL-28 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Mfg Application Notes | Compressor Applications Audio Switching Applications Audio Limiting - NSL-32 OptoCouplers - Audio Level Control | |
| Online Catalog | NSL-28, 32 Series | |
| Category | Isolators | |
| Family | Special Purpose | |
| Manufacturer | Luna Optoelectronics | |
| Series | - | |
| Packaging | Bulk | |
| Part Status | Active | |
| Type | Photocell Optocoupler | |
| Number of Channels | 1 | |
| Voltage - Isolation | - | |
| Common Mode Transient Immunity (Min) | - | |
| Input Type | - | |
| Current - Output / Channel | - | |
| Propagation Delay tpLH / tpHL (Max) | - | |
| Rise / Fall Time (Typ) | 5ms, 80ms | |
| Voltage - Forward (Vf) (Typ) | - | |
| Current - DC Forward (If) (Max) | 40mA | |
| Voltage - Supply | 100V (Max) | |
| Operating Temperature | - | |
| Mounting Type | Free Hanging | |
| Package / Case | Module | |
| Supplier Device Package | - | |
| Approvals | - | |
| Standard Package | 500 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | NSL-28 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
NSL-28 is in stock for immediate shipping now. We are the distributor of Luna Optoelectronics all series components. The condition of NSL-28 is new and unused, you can buy NSL-28 Luna Optoelectronics with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for NSL-28.
