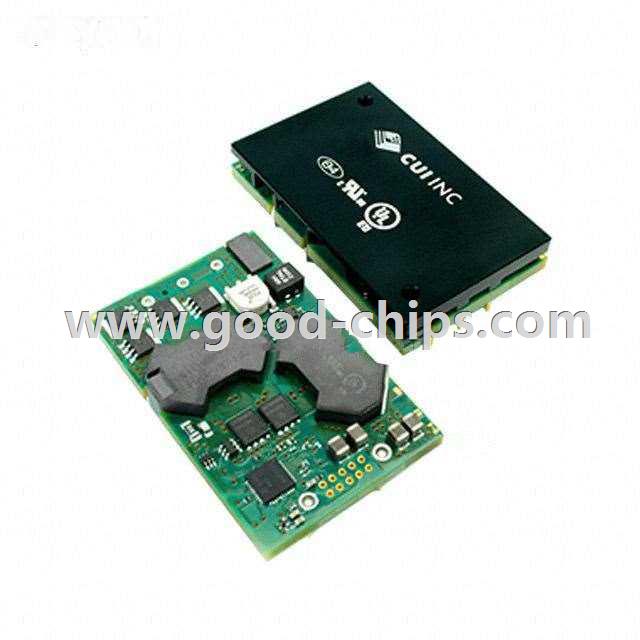

Manufacturer Part Number: | NQB-468NMA-ANH |
---|---|
Manufacturer: | CUI Inc. |
Product Category: | DC DC Converters |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | CONV BUS 12V OUT 468W HS |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | NQB-468NMA-ANH Datasheet |
Internal Part Number | 898-NQB-468NMA-ANH | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Product Training Modules | Novum Intermediate Bus Converters EMI Regulations and Mitigation Considerations for Switching Power Supplies Reliability Considerations for Power Supplies Power Supply Safety Standards, Agencies and Marks Thermal Management of Power Supplies | |
Video File | Advanced Intermediate Bus Converters | |
RoHS Information | NQB-N Series Cert of Compliance | |
Design Resources | Novum ACE™ Registration | |
Category | Power Supplies - Board Mount | |
Family | DC DC Converters | |
Manufacturer | CUI Inc. | |
Series | Novum®, NQB-N | |
Packaging | Tray | |
Part Status | Active | |
Type | Intermediate Bus Converter | |
Number of Outputs | 1 | |
Voltage - Input (Min) | 40V | |
Voltage - Input (Max) | 60V | |
Voltage - Output 1 | 12V | |
Voltage - Output 2 | - | |
Voltage - Output 3 | - | |
Current - Output (Max) | 39A | |
Power (Watts) - Manufacture Series | 468W | |
Voltage - Isolation | 2.25kV (2250V) | |
Applications | ITE (Commercial) | |
Features | Remote On/Off, OCP, OTP, OVP, UVLO | |
Mounting Type | Through Hole | |
Package / Case | 5-DIP Module, 1/4 Brick | |
Size / Dimension | 2.28" L x 1.45" W x 0.52" H (57.9mm x 36.8mm x 13.2mm) | |
Operating Temperature | -40°C ~ 125°C | |
Efficiency | 96.4% | |
Power (Watts) - Max | 468W | |
Standard Package | 20 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | NQB-468NMA-ANH | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
NQB-468NMA-ANH is in stock for immediate shipping now. We are the distributor of CUI Inc. all series components. The condition of NQB-468NMA-ANH is new and unused, you can buy NQB-468NMA-ANH CUI Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for NQB-468NMA-ANH.
