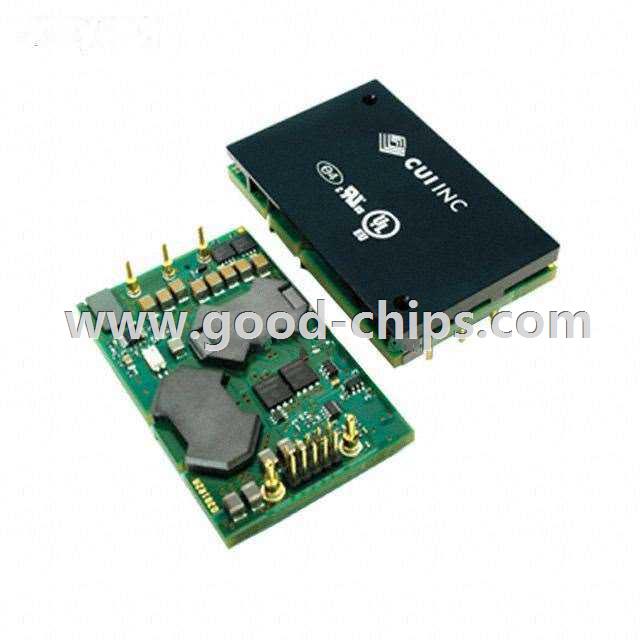

| Manufacturer Part Number: | NQB-468DMA-ANH |
|---|---|
| Manufacturer: | CUI Inc. |
| Product Category: | DC DC Converters |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | CONV BUS 12V OUT 468W DG HS |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | NQB-468DMA-ANH Datasheet |
| Internal Part Number | 898-NQB-468DMA-ANH | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Novum Intermediate Bus Converters EMI Regulations and Mitigation Considerations for Switching Power Supplies Reliability Considerations for Power Supplies Power Supply Safety Standards, Agencies and Marks Thermal Management of Power Supplies | |
| Video File | Advanced Intermediate Bus Converters | |
| RoHS Information | NQB-D Series Cert of Compliance | |
| Design Resources | Novum ACE™ Registration | |
| Category | Power Supplies - Board Mount | |
| Family | DC DC Converters | |
| Manufacturer | CUI Inc. | |
| Series | Novum®, NQB-D | |
| Packaging | Tray | |
| Part Status | Active | |
| Type | Intermediate Bus Converter, Digital | |
| Number of Outputs | 1 | |
| Voltage - Input (Min) | 40V | |
| Voltage - Input (Max) | 60V | |
| Voltage - Output 1 | 12V | |
| Voltage - Output 2 | - | |
| Voltage - Output 3 | - | |
| Current - Output (Max) | 39A | |
| Power (Watts) - Manufacture Series | 468W | |
| Voltage - Isolation | 2.25kV (2250V) | |
| Applications | ITE (Commercial) | |
| Features | Remote On/Off, OCP, OTP, OVP, UVLO | |
| Mounting Type | Through Hole | |
| Package / Case | 15-DIP Module, 1/4 Brick | |
| Size / Dimension | 2.28" L x 1.45" W x 0.52" H (57.9mm x 36.8mm x 13.2mm) | |
| Operating Temperature | -40°C ~ 125°C | |
| Efficiency | 96.4% | |
| Power (Watts) - Max | 468W | |
| Standard Package | 20 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | NQB-468DMA-ANH | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
NQB-468DMA-ANH is in stock for immediate shipping now. We are the distributor of CUI Inc. all series components. The condition of NQB-468DMA-ANH is new and unused, you can buy NQB-468DMA-ANH CUI Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for NQB-468DMA-ANH.
