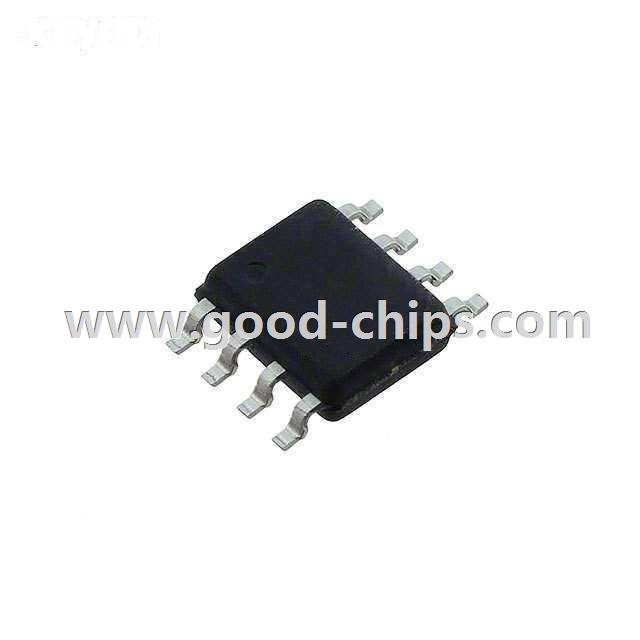

Manufacturer Part Number: | NPT1004D |
---|---|
Manufacturer: | M/A-Com Technology Solutions |
Product Category: | Transistors - FETs, MOSFETs - RF |
Available Quantity: | 9198 Pieces |
Unit Price: | Quote by Email |
Description: | RF Mosfet HEMT 28V 350mA 0Hz ~ 4GHz 13dB 37dBm 8-SOP2 |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | NPT1004D Datasheet |
Internal Part Number | 898-NPT1004D | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
PCN Design/Specification | Marking Scheme Update 23/Apr/2015 | |
Online Catalog | GaN on SiC RF Transistors | |
Category | Discrete Semiconductor Products | |
Family | Transistors - FETs, MOSFETs - RF | |
Manufacturer | M/A-Com Technology Solutions | |
Series | - | |
Packaging | Tube | |
Part Status | Active | |
Transistor Type | HEMT | |
Frequency | 0Hz ~ 4GHz | |
Gain | 13dB | |
Voltage - Test | 28V | |
Current Rating | 9.5A | |
Noise Figure | - | |
Current - Test | 350mA | |
Power - Output | 37dBm | |
Voltage - Rated | 100V | |
Package / Case | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | |
Supplier Device Package | 8-SOP2 | |
Standard Package | 25 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | NPT1004D | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
NPT1004D is in stock for immediate shipping now. We are the distributor of M/A-Com Technology Solutions all series components. The condition of NPT1004D is new and unused, you can buy NPT1004D M/A-Com Technology Solutions with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for NPT1004D.
