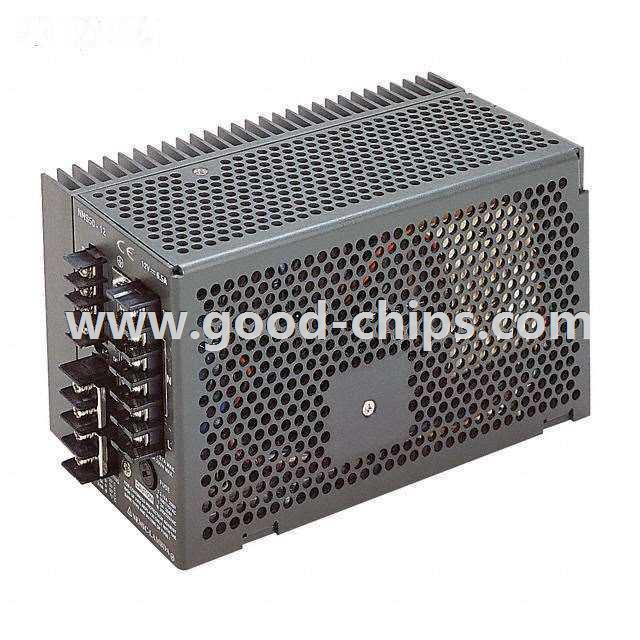

| Manufacturer Part Number: | NNS5015 |
|---|---|
| Manufacturer: | TDK-Lambda Americas Inc. |
| Product Category: | AC DC Converters |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | AC/DC CONVERTER 15V 83W |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | NNS5015 Datasheet |
| Internal Part Number | 898-NNS5015 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Power Supplies - External/Internal (Off-Board) | |
| Family | AC DC Converters | |
| Manufacturer | TDK-Lambda Americas Inc. | |
| Series | NN | |
| Part Status | Active | |
| Type | Open Frame | |
| Number of Outputs | 1 | |
| Voltage - Input | 85 ~ 265 VAC | |
| Voltage - Output 1 | 15V | |
| Voltage - Output 2 | - | |
| Voltage - Output 3 | - | |
| Voltage - Output 4 | - | |
| Current - Output (Max) | 5.5A | |
| Power (Watts) | 83W | |
| Applications | ITE (Commercial) | |
| Voltage - Isolation | 3.75kV (3750V) | |
| Efficiency | 53% | |
| Operating Temperature | -20°C ~ 71°C (With Derating) | |
| Features | Load Sharing, Universal Input | |
| Mounting Type | Chassis Mount | |
| Size / Dimension | 7.87" L x 3.82" W x 4.45" H (200.0mm x 97.0mm x 113.0mm) | |
| Minimum Load Required | - | |
| Approvals | CE | |
| Power (Watts) - Max | 83W | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | NNS5015 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
NNS5015 is in stock for immediate shipping now. We are the distributor of TDK-Lambda Americas Inc. all series components. The condition of NNS5015 is new and unused, you can buy NNS5015 TDK-Lambda Americas Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for NNS5015.
