| Manufacturer Part Number: | NLX1G99AMX1TCG |
|---|---|
| Manufacturer: | ON Semiconductor |
| Product Category: | Logic - Gates and Inverters - Multi-Function, Configurable |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Configurable Multiple Function Configurable 1 Circuit 4 Input 8-ULLGA (1.95x1) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | NLX1G99AMX1TCG Datasheet |
| Internal Part Number | 898-NLX1G99AMX1TCG | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Obsolescence/ EOL | Multiple Devices 05/Apr/2014 | |
| Category | Integrated Circuits (ICs) | |
| Family | Logic - Gates and Inverters - Multi-Function, Configurable | |
| Manufacturer | ON Semiconductor | |
| Series | MiniGate™ | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Obsolete | |
| Logic Type | Configurable Multiple Function | |
| Number of Circuits | 1 | |
| Number of Inputs | 4 | |
| Schmitt Trigger Input | Yes | |
| Output Type | Tri-State | |
| Current - Output High, Low | 32mA, 32mA | |
| Voltage - Supply | 1.65 V ~ 5.5 V | |
| Operating Temperature | -55°C ~ 125°C | |
| Mounting Type | Surface Mount | |
| Package / Case | 8-XFLGA | |

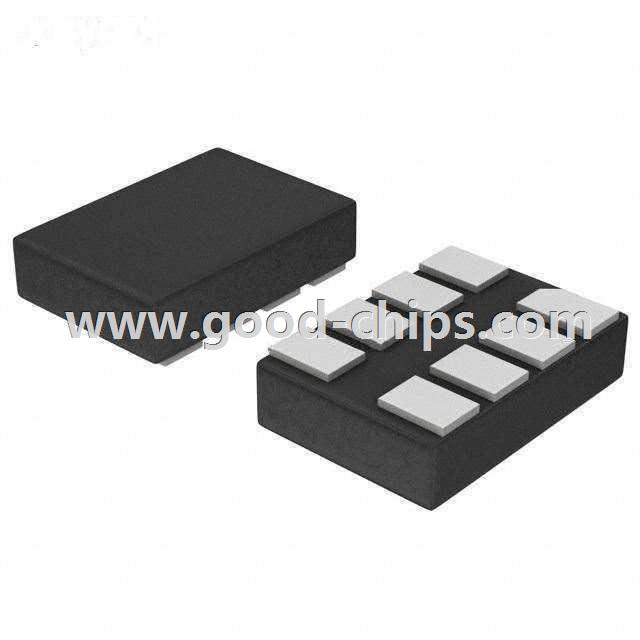

| Supplier Device Package | 8-ULLGA (1.95x1) | |
| Standard Package | 3,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | NLX1G99AMX1TCG | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
NLX1G99AMX1TCG is in stock for immediate shipping now. We are the distributor of ON Semiconductor all series components. The condition of NLX1G99AMX1TCG is new and unused, you can buy NLX1G99AMX1TCG ON Semiconductor with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for NLX1G99AMX1TCG.
