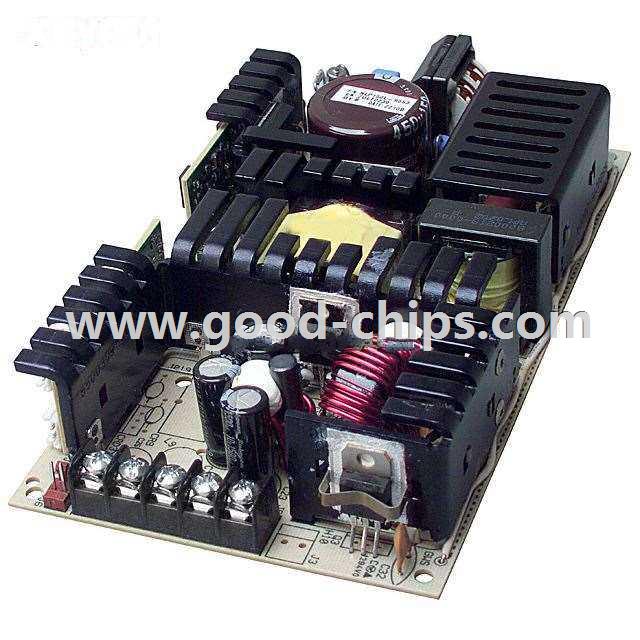

| Manufacturer Part Number: | NLP150L-96S3 |
|---|---|
| Manufacturer: | Artesyn Embedded Technologies |
| Product Category: | AC DC Converters |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | AC/DC CONVERTER 3.3V 110W |
| Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | NLP150L-96S3 Datasheet |
| Internal Part Number | 898-NLP150L-96S3 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Power Supplies - External/Internal (Off-Board) | |
| Family | AC DC Converters | |
| Manufacturer | Artesyn Embedded Technologies | |
| Series | NLP150L | |
| Part Status | Obsolete | |
| Type | Open Frame | |
| Number of Outputs | 1 | |
| Voltage - Input | 90 ~ 264 VAC | |
| Voltage - Output 1 | 3.3V | |
| Voltage - Output 2 | - | |
| Voltage - Output 3 | - | |
| Voltage - Output 4 | - | |
| Current - Output (Max) | 22A | |
| Power (Watts) | 110W (150W Forced Air) | |
| Applications | ITE (Commercial) | |
| Voltage - Isolation | 3kV (3000V) | |
| Efficiency | 73% | |
| Operating Temperature | 0°C ~ 70°C (With Derating) | |
| Features | Load Sharing, Universal Input | |
| Mounting Type | Chassis Mount | |
| Size / Dimension | 7.80" L x 3.80" W x 1.26" H (198.1mm x 96.5mm x 32.0mm) | |
| Minimum Load Required | Yes | |
| Approvals | CE, CSA, UL | |
| Power (Watts) - Max | 150W | |
| Standard Package | 10 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | NLP150L-96S3 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
NLP150L-96S3 is in stock for immediate shipping now. We are the distributor of Artesyn Embedded Technologies all series components. The condition of NLP150L-96S3 is new and unused, you can buy NLP150L-96S3 Artesyn Embedded Technologies with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for NLP150L-96S3.
