| Manufacturer Part Number: | NLAS54405MT2TBG |
|---|---|
| Manufacturer: | ON Semiconductor |
| Product Category: | Interface - Analog Switches, Multiplexers, Demultiplexers |
| Available Quantity: | 12010 Pieces |
| Unit Price: | Quote by Email |
| Description: | 2 Circuit IC Switch 2:1 2.1 Ohm (Typ) 16-WQFN (1.8x2.6) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | NLAS54405MT2TBG Datasheet |
| Internal Part Number | 898-NLAS54405MT2TBG | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | Switch | |
| Category | Integrated Circuits (ICs) | |
| Family | Interface - Analog Switches, Multiplexers, Demultiplexers | |
| Manufacturer | ON Semiconductor | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Switch Circuit | SPDT | |
| Multiplexer/Demultiplexer Circuit | 2:1 | |
| Number of Circuits | 2 | |
| On-State Resistance (Max) | 2.1 Ohm (Typ) | |
| Channel-to-Channel Matching (ΔRon) | 46 mOhm | |
| Voltage - Supply, Single (V+) | 3 V ~ 5.5 V | |
| Voltage - Supply, Dual (V±) | - | |
| Switch Time (Ton, Toff) (Max) | 11µs, 95ns (Typ) | |
| -3db Bandwidth | 450MHz | |
| Charge Injection | - | |
| Channel Capacitance (CS(off), CD(off)) | 3.3pF | |
| Current - Leakage (IS(off)) (Max) | - | |
| Crosstalk | -97dB @ 20kHz | |
| Operating Temperature | -40°C ~ 85°C (TA) | |

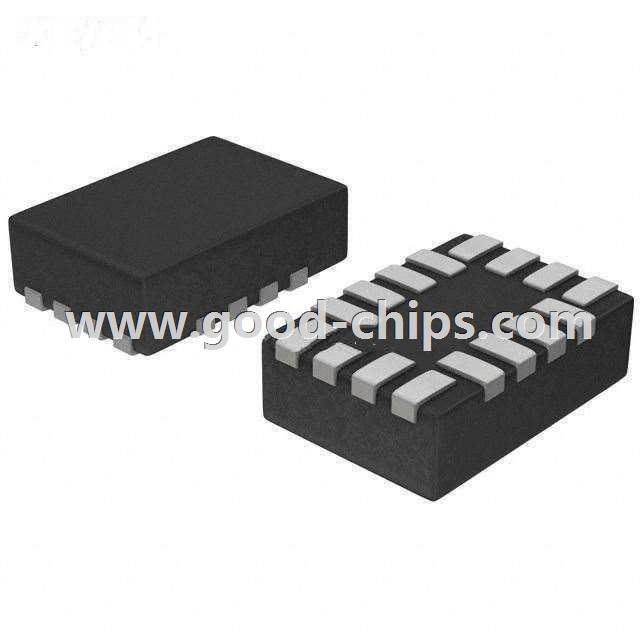

| Package / Case | 16-WFQFN | |
| Supplier Device Package | 16-WQFN (1.8x2.6) | |
| Standard Package | 3,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | NLAS54405MT2TBG | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
NLAS54405MT2TBG is in stock for immediate shipping now. We are the distributor of ON Semiconductor all series components. The condition of NLAS54405MT2TBG is new and unused, you can buy NLAS54405MT2TBG ON Semiconductor with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for NLAS54405MT2TBG.
