| Manufacturer Part Number: | NLAS5123MNR2G |
|---|---|
| Manufacturer: | ON Semiconductor |
| Product Category: | Interface - Analog Switches, Multiplexers, Demultiplexers |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | 1 Circuit IC Switch 2:1 1 Ohm 6-WDFN (1.2x1.0) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | NLAS5123MNR2G Datasheet |
| Internal Part Number | 898-NLAS5123MNR2G | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Assembly/Origin | uDFN, uQFN Family 28/Jun/2013 | |
| PCN Packaging | Covering Tape/Material Chg 20/May/2016 | |
| Category | Integrated Circuits (ICs) | |
| Family | Interface - Analog Switches, Multiplexers, Demultiplexers | |
| Manufacturer | ON Semiconductor | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Switch Circuit | SPDT | |
| Multiplexer/Demultiplexer Circuit | 2:1 | |
| Number of Circuits | 1 | |
| On-State Resistance (Max) | 1 Ohm | |
| Channel-to-Channel Matching (ΔRon) | 120 mOhm | |
| Voltage - Supply, Single (V+) | 1.65 V ~ 4.5 V | |
| Voltage - Supply, Dual (V±) | - | |
| Switch Time (Ton, Toff) (Max) | 20ns, 15ns | |
| -3db Bandwidth | 55MHz | |
| Charge Injection | 48pC | |
| Channel Capacitance (CS(off), CD(off)) | 20pF | |
| Current - Leakage (IS(off)) (Max) | 2nA | |
| Crosstalk | -70dB @ 1MHz | |
| Operating Temperature | -40°C ~ 85°C (TA) | |

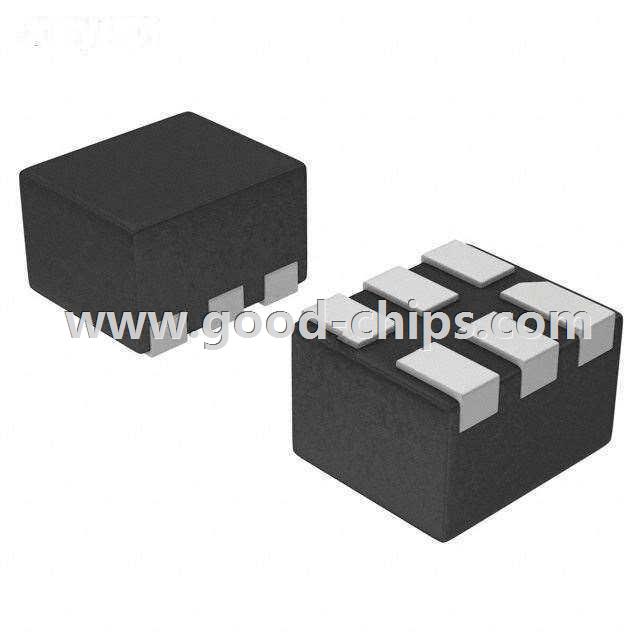

| Package / Case | 6-WFDFN | |
| Supplier Device Package | 6-WDFN (1.2x1.0) | |
| Standard Package | 3,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | NLAS5123MNR2G | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
NLAS5123MNR2G is in stock for immediate shipping now. We are the distributor of ON Semiconductor all series components. The condition of NLAS5123MNR2G is new and unused, you can buy NLAS5123MNR2G ON Semiconductor with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for NLAS5123MNR2G.
