| Manufacturer Part Number: | NLAS4684FCT1 |
|---|---|
| Manufacturer: | ON Semiconductor |
| Product Category: | Interface - Analog Switches, Multiplexers, Demultiplexers |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | 2 Circuit IC Switch 2:1 800 mOhm 10-Microbump |
| Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | NLAS4684FCT1 Datasheet |
| Internal Part Number | 898-NLAS4684FCT1 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Obsolescence/ EOL | Multiple Devices 03/Jan/2008 | |
| Category | Integrated Circuits (ICs) | |
| Family | Interface - Analog Switches, Multiplexers, Demultiplexers | |
| Manufacturer | ON Semiconductor | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Obsolete | |
| Switch Circuit | SPDT | |
| Multiplexer/Demultiplexer Circuit | 2:1 | |
| Number of Circuits | 2 | |
| On-State Resistance (Max) | 800 mOhm | |
| Channel-to-Channel Matching (ΔRon) | 60 mOhm | |
| Voltage - Supply, Single (V+) | 1.8 V ~ 5.5 V | |
| Voltage - Supply, Dual (V±) | - | |
| Switch Time (Ton, Toff) (Max) | 30ns, 30ns | |
| -3db Bandwidth | 9.5MHz | |
| Charge Injection | 15pC | |
| Channel Capacitance (CS(off), CD(off)) | 102pF, 104pF | |
| Current - Leakage (IS(off)) (Max) | 1µA | |
| Crosstalk | -83dB @ 100kHz | |
| Operating Temperature | -55°C ~ 125°C (TA) | |
| Package / Case | 10-UFBGA, FCBGA | |

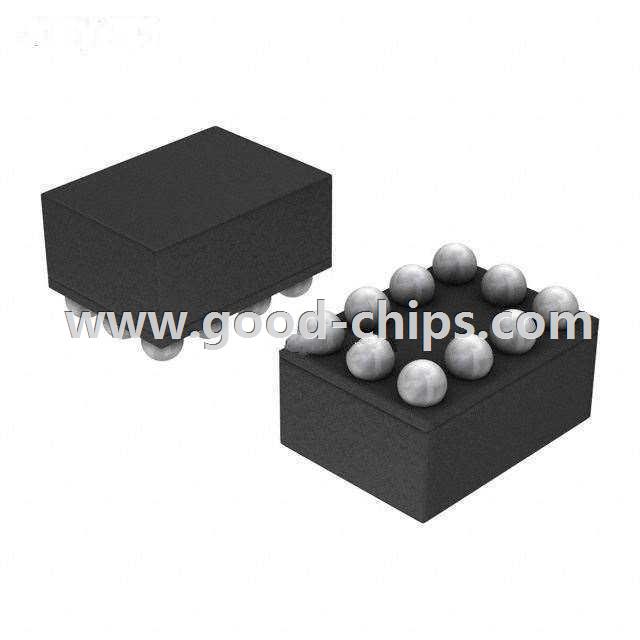

| Supplier Device Package | 10-Microbump | |
| Standard Package | 3,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | NLAS4684FCT1 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
NLAS4684FCT1 is in stock for immediate shipping now. We are the distributor of ON Semiconductor all series components. The condition of NLAS4684FCT1 is new and unused, you can buy NLAS4684FCT1 ON Semiconductor with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for NLAS4684FCT1.
