| Manufacturer Part Number: | NLAS3799BMUR2G |
|---|---|
| Manufacturer: | ON Semiconductor |
| Product Category: | Interface - Analog Switches, Multiplexers, Demultiplexers |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | 2 Circuit IC Switch 2:2 400 mOhm 16-UQFN (2.6x1.8) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | NLAS3799BMUR2G Datasheet |
| Internal Part Number | 898-NLAS3799BMUR2G | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Obsolescence/ EOL | 2Q2016 Product EOL 22/Jul/2016 | |
| Category | Integrated Circuits (ICs) | |
| Family | Interface - Analog Switches, Multiplexers, Demultiplexers | |
| Manufacturer | ON Semiconductor | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Last Time Buy | |
| Switch Circuit | DPDT | |
| Multiplexer/Demultiplexer Circuit | 2:2 | |
| Number of Circuits | 2 | |
| On-State Resistance (Max) | 400 mOhm | |
| Channel-to-Channel Matching (ΔRon) | 50 mOhm (Max) | |
| Voltage - Supply, Single (V+) | 1.65 V ~ 4.5 V | |
| Voltage - Supply, Dual (V±) | - | |
| Switch Time (Ton, Toff) (Max) | 50ns, 30ns | |
| -3db Bandwidth | 19MHz | |
| Charge Injection | 51pC | |
| Channel Capacitance (CS(off), CD(off)) | 3pF | |
| Current - Leakage (IS(off)) (Max) | 500nA | |
| Crosstalk | -90dB @ 100kHz | |
| Operating Temperature | -40°C ~ 85°C (TA) | |

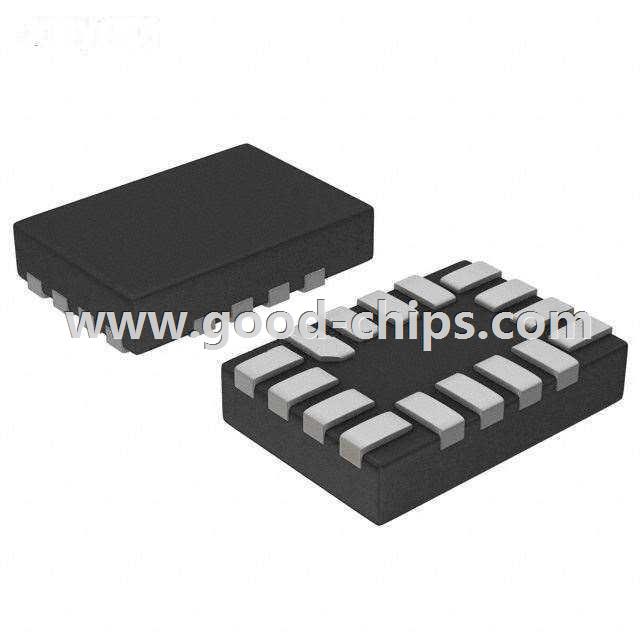

| Package / Case | 16-UFQFN Exposed Pad | |
| Supplier Device Package | 16-UQFN (2.6x1.8) | |
| Standard Package | 3,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | NLAS3799BMUR2G | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
NLAS3799BMUR2G is in stock for immediate shipping now. We are the distributor of ON Semiconductor all series components. The condition of NLAS3799BMUR2G is new and unused, you can buy NLAS3799BMUR2G ON Semiconductor with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for NLAS3799BMUR2G.
