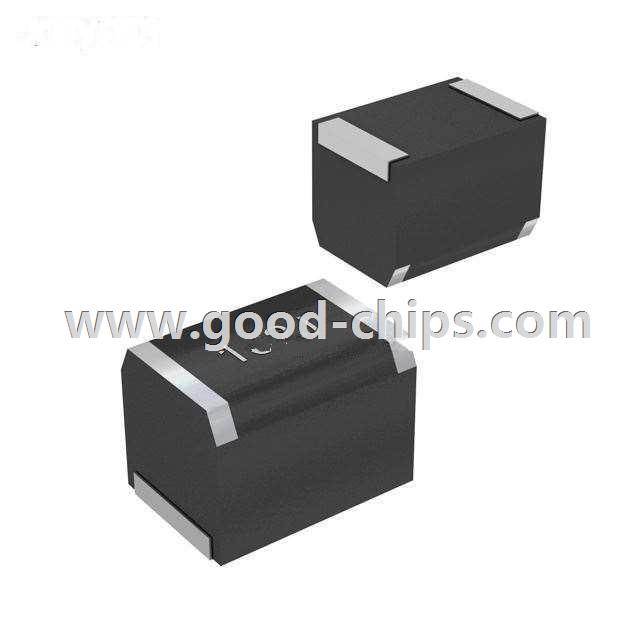

| Manufacturer Part Number: | NL453232T-331J |
|---|---|
| Manufacturer: | TDK Corporation |
| Product Category: | Fixed Inductors |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | 330µH Unshielded Wirewound Inductor 85mA 14 Ohm Max 1812 (4532 Metric) |
| Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | NL453232T-331J Datasheet |
| Internal Part Number | 898-NL453232T-331J | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Category | Inductors, Coils, Chokes | |
| Family | Fixed Inductors | |
| Manufacturer | TDK Corporation | |
| Series | NL | |
| Packaging | Digi-Reel® | |
| Part Status | Obsolete | |
| Type | Wirewound | |
| Material - Core | - | |
| Inductance | 330µH | |
| Tolerance | ±5% | |
| Current Rating | 85mA | |
| Current - Saturation | - | |
| Shielding | Unshielded | |
| DC Resistance (DCR) | 14 Ohm Max | |
| Q @ Freq | 40 @ 796kHz | |
| Frequency - Self Resonant | 3.5MHz | |
| Ratings | - | |
| Operating Temperature | -40°C ~ 105°C | |
| Frequency - Test | 796kHz | |
| Mounting Type | Surface Mount | |
| Package / Case | 1812 (4532 Metric) | |
| Size / Dimension | 0.177" L x 0.126" W (4.50mm x 3.20mm) | |
| Height - Seated (Max) | 0.134" (3.40mm) | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | NL453232T-331J | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
NL453232T-331J is in stock for immediate shipping now. We are the distributor of TDK Corporation all series components. The condition of NL453232T-331J is new and unused, you can buy NL453232T-331J TDK Corporation with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for NL453232T-331J.
