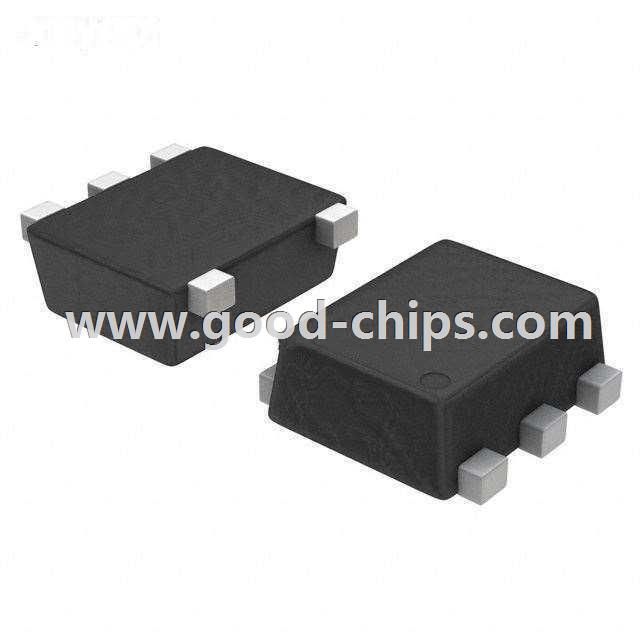

| Manufacturer Part Number: | NL17SZ00P5T5G |
|---|---|
| Manufacturer: | ON Semiconductor |
| Product Category: | Logic - Gates and Inverters |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | NAND Gate IC 1 Channel SOT-953 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | NL17SZ00P5T5G Datasheet |
| Internal Part Number | 898-NL17SZ00P5T5G | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Integrated Circuits (ICs) | |
| Family | Logic - Gates and Inverters | |
| Manufacturer | ON Semiconductor | |
| Series | 17SZ | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Logic Type | NAND Gate | |
| Number of Circuits | 1 | |
| Number of Inputs | 2 | |
| Features | - | |
| Voltage - Supply | 1.65 V ~ 5.5 V | |
| Current - Quiescent (Max) | 1µA | |
| Current - Output High, Low | 32mA, 32mA | |
| Logic Level - Low | - | |
| Logic Level - High | - | |
| Max Propagation Delay @ V, Max CL | 4.3ns @ 5V, 50pF | |
| Operating Temperature | -55°C ~ 125°C | |
| Mounting Type | Surface Mount | |
| Supplier Device Package | SOT-953 | |
| Package / Case | SOT-953 | |
| Standard Package | 8,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | NL17SZ00P5T5G | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
NL17SZ00P5T5G is in stock for immediate shipping now. We are the distributor of ON Semiconductor all series components. The condition of NL17SZ00P5T5G is new and unused, you can buy NL17SZ00P5T5G ON Semiconductor with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for NL17SZ00P5T5G.
